The power connectors for the Single-Height Chassis have the following pinout:

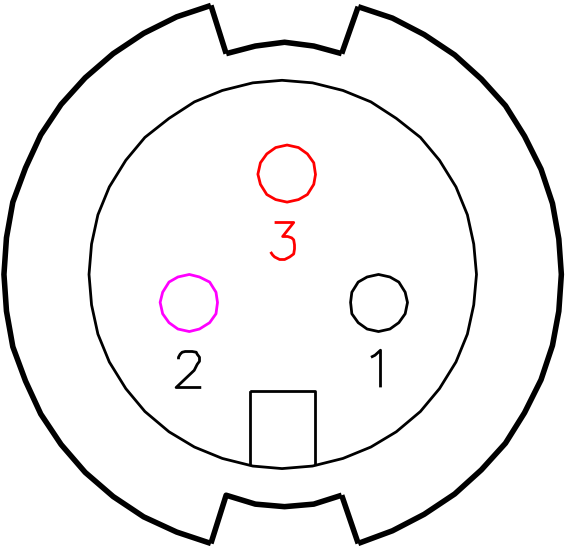

Single-Height - Power Connector
|
Pin # |
Description (Conxall P/N 16282-3SG-318) |
|
|---|---|---|
|
1 |
Reserved / Not Connected |
|
|
2 |
Ground |
|
|
3 |
VCC=+12VDC |
|
