Ethernet Connector

The Makito X4 Rugged video encoder allows for connectivity with two 10/100/1000 Gigabit Ethernet ports over CAT-5 unshielded twisted pair per IEEE 802.3ab. The naming convention is per IEEE STD 802.3. These ports are designated as Network 1 and Network 2.

Network Connector


On Unit

Mating Connector

Manufacturer

Hirose

Hirose

Connector Type

Network Connector

Network Connector

Part Number

LF10WBRB-12S

LF10WBP-12P or
LF10WBP-12P(31)

Ethernet

Network Connector Pinout

Contact #

Description

1

ETH A+

2

ETH A-

3

ETH B+

4

ETH B-

5

ETH C-

6

ETH C+

7

ETH D-

8

ETH D+


Ethernet GBE0 Pin Locations

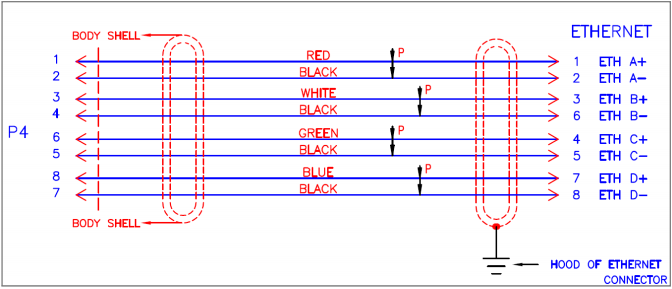

Ethernet Wiring Diagram

Ethernet Connector Pinout Diagram


For the connector and cable, see Step #2 in Connect to the Network and Audio/Video Sources.
