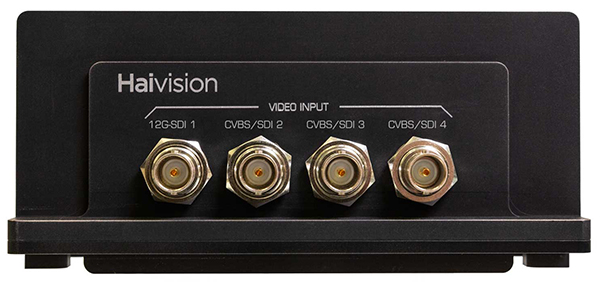

The Makito X4 Rugged enclosure provides four (4) rugged connectors for connecting the encoder's Video inputs, located on the front panel.
|
Connector |
Description |
Number of Contacts |
|---|---|---|
|
4X Coax BNC Jack Amphenol P/N 31-70551-12G |
1 per coax |
Important
Only SDI1 can support input up to 6/12G-SDI. The remaining inputs (SDI2, SDI3 and SDI4) support up to 3G-SDI or CVBS.
