Viewing Destination Status

To view various statistics and telemetry of a destination, click the Expand icon under the destination preview.

StreamHub

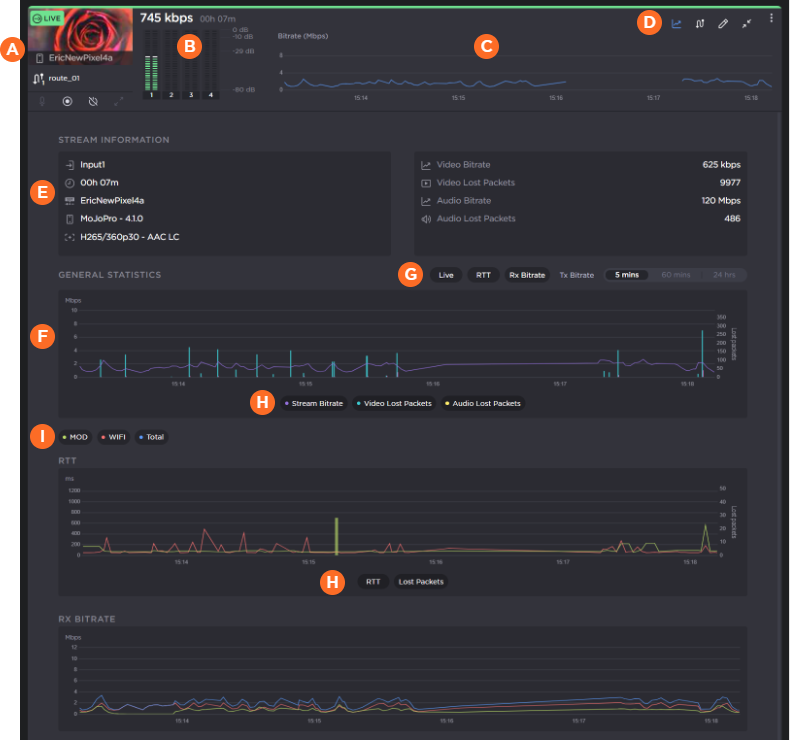

For StreamHubs, the following sections appear when expanding the destination:


A

Route Tile as described in Routes Pane.

B

Volume Meters

C

Bitrate Graph

D

Action Bar allows you to Stats view telemetry data, Route icon switch to the route view, Edit icon edit the route, or Collapse icon collapse the detailed view.

E

Stream Information section shows the codec and protocol of the stream, as well as various statistics of your stream.

F

General statistics, RTT (round-trip time), and Bitrate graphs.

Graph toggle buttons:

G

Above the General graph:

  • Click the Live, RTT, Rx Bitrate, and TX Bitrate buttons to toggle display of each graph.

  • Click the 5 mins, 60 mins, and 24 hrs buttons to change the displayed time in each of the graphs.

H

In the legend below each graph, click each item to toggle their display in the graph.


Above the RTT, Rx Bitrate, and TX Bitrate graphs, click the network connection buttons to toggle their display in each graph.


Makito Decoder

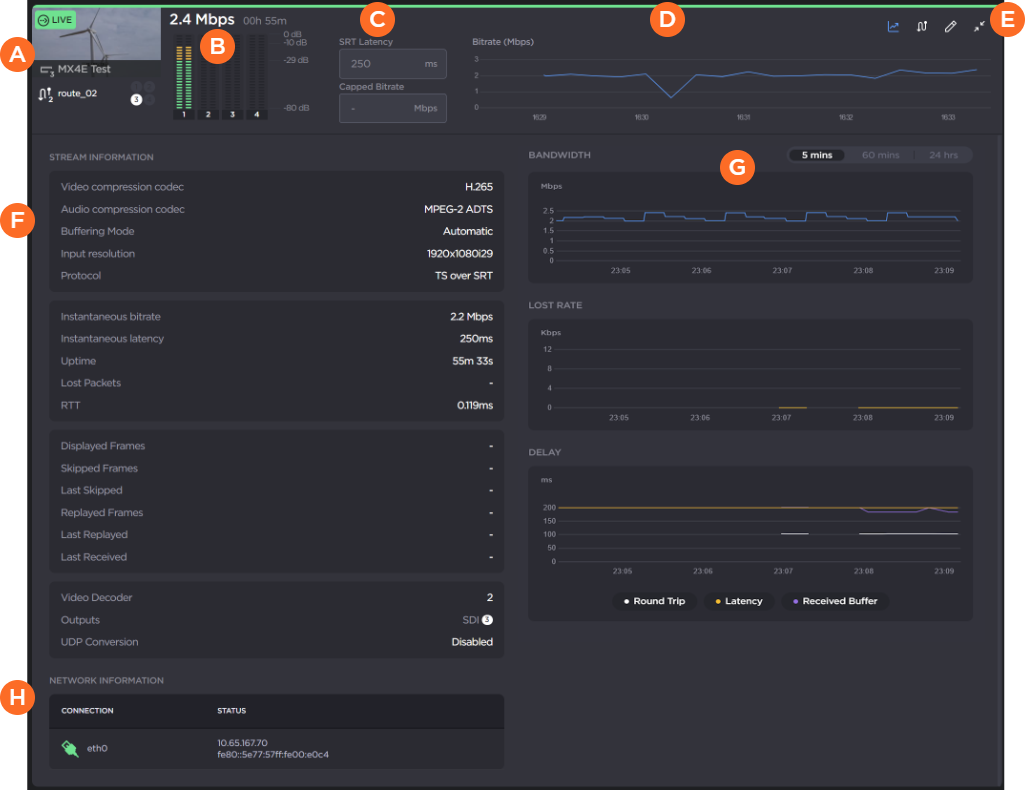

For Makito decoders, the following sections appear when expanding the destination:



Route Tile as described in Routes Pane.


Volume Meters


Latency/Capped Bitrate setting


Bitrate Graph


Action Bar allows you to Stats view telemetry data, Route icon switch to the route view, Edit icon edit the route, or Collapse icon collapse the detailed view.


Stream Information section shows the codec and protocol of the stream, as well as various statistics of your stream.


Bandwidth, lost packet rate, and delay graphs.

  • Above the graphs, click the 5 mins, 60 mins, and 24 hrs buttons to change the displayed time in each of the graphs.

  • In the delay graph, click the items in the legend to toggle display of the round trip, latency, and received buffer graphs.


Network Information shows the network connection and IP address.
External Destination

For external destinations, limited information is available, since detailed stream protocol and statistics is not available to Hub 360:


A

Route Tile as described in Routes Pane.

B

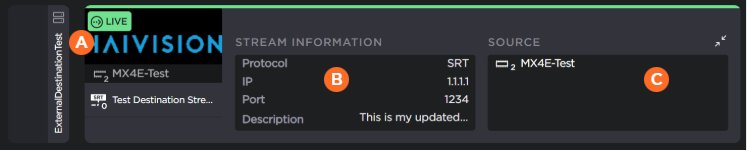

Stream information section shows the protocol, IP address, port, and description.

C

Source section includes the source name.

  • The icon next to the source name indicates it is a Makito Encoder and the encoder number.
