Using Data Bridge Connections in Hub 360

Hub 360 supports your field units using data bridge mode. To manage these routes on Hub 360:

1. Ensure data bridge is enabled on your field unit:

   1. In the field unit’s sidebar click Settings.

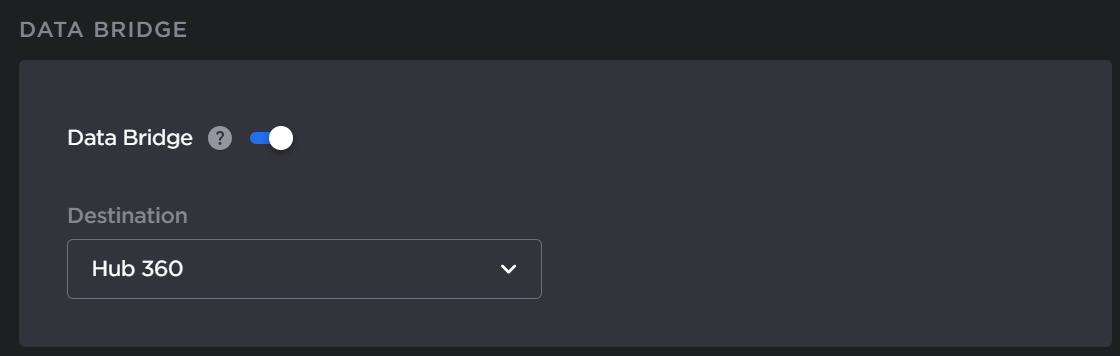

   2. Scroll to the Data Bridge section, ensure the Hub 360 Destination Profile is selected in the dropdown and enable the Data Bridge toggle:

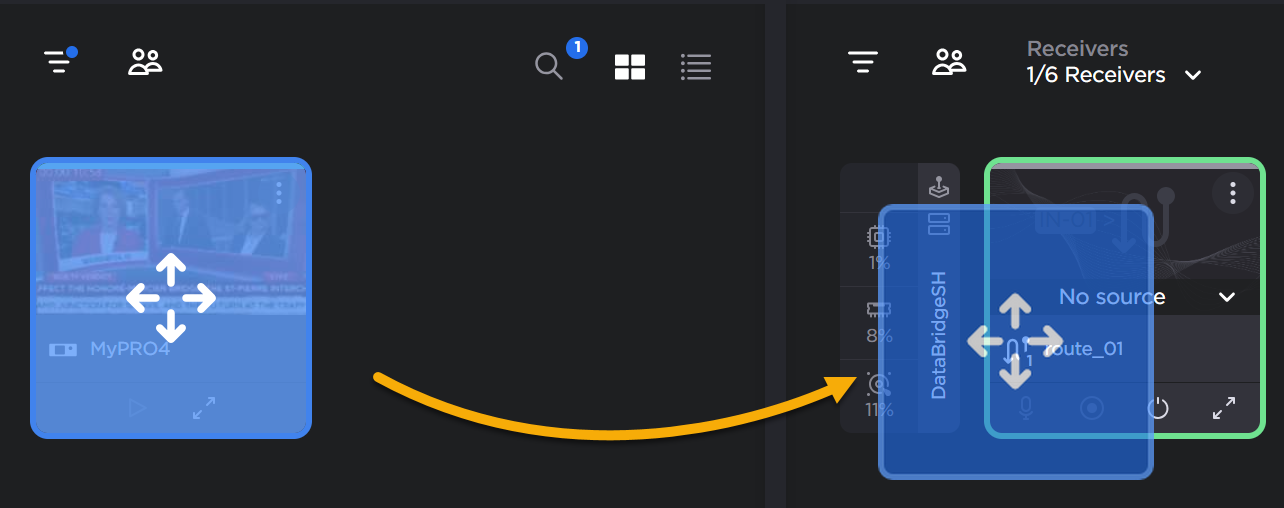

2. Create the route to your desired StreamHub in Hub 360:

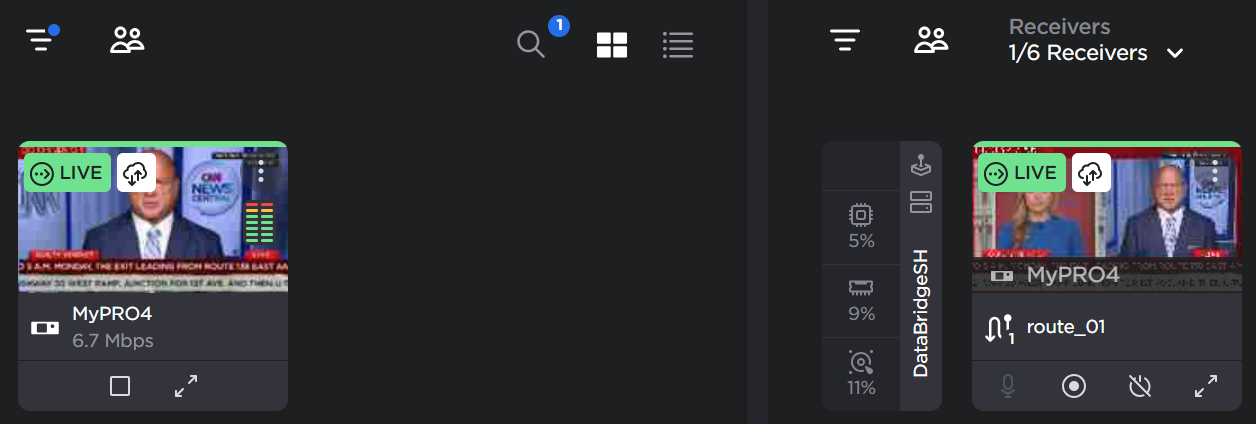

3. Start the Live and a Data Bridge icon appears in the source and route tiles to indicate the data bridge connection between your field unit and StreamHub has been created:

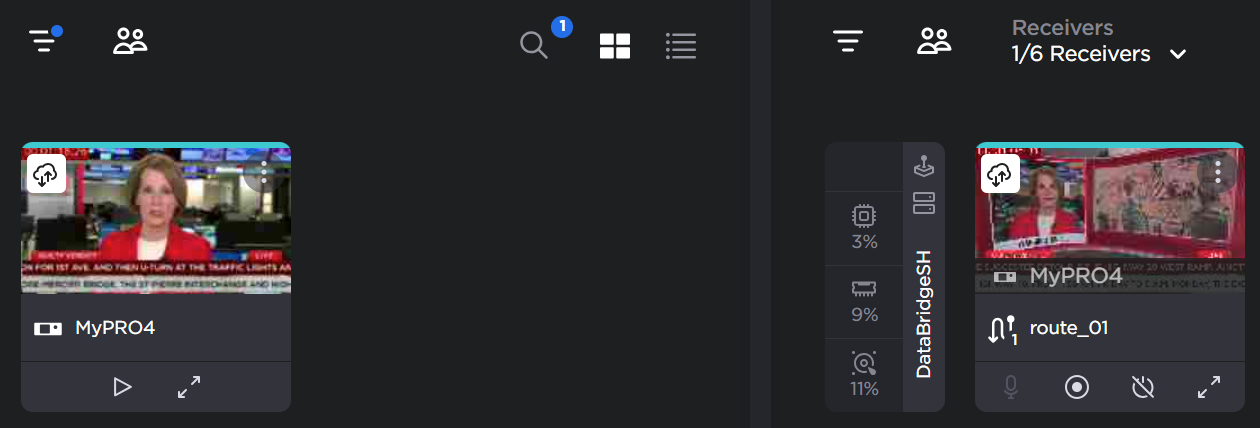

4. When you stop the route, the StreamHub input indicates the data bridge connection is reserved. The dropdown to change the source from the route tile is disabled.

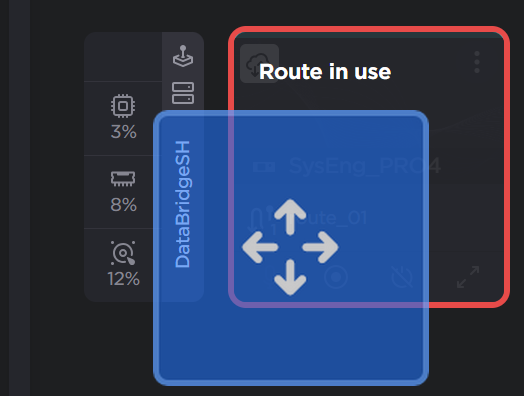

   And drag-and-drop is blocked:

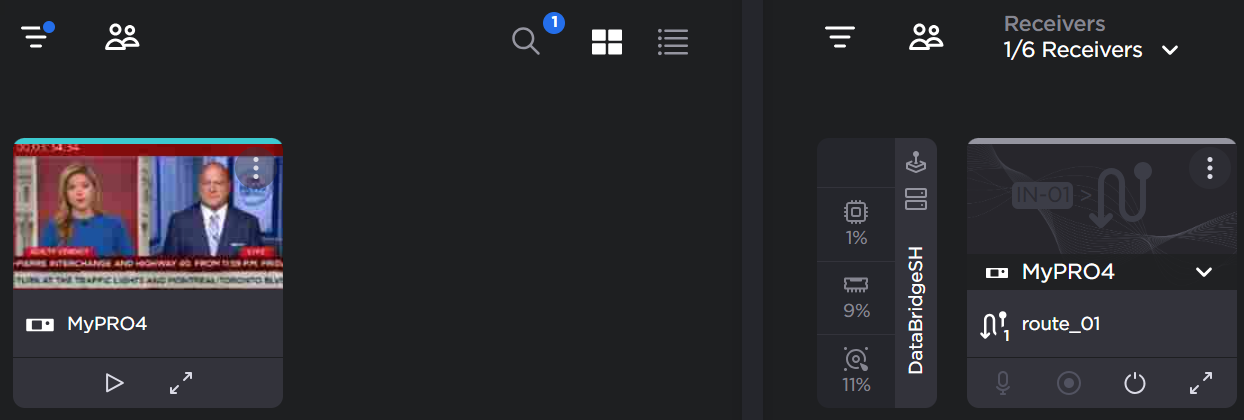

5. If Data Bridge is disabled in the field unit, the icons disappear and the StreamHub input may be reassigned:
