Version History

Using Gateway is faster and easier than ever with the latest version of Haivision's award-winning user experience.

• Similar to other Haivision products, inputs and outputs (previously called sources and destinations) are now distinct from the route configuration. This allows them to be defined once, then easily applied to multiple routes.

• Create and edit routes intuitively with our new drag-and-drop visual route builder.

• Full mobile support: Access Gateway on the go! Get work done from anywhere with Gateway's mobile and tablet friendly user experience.

Note

After upgrading to version 4.2, you may not immediately see the new UI. Refresh your browser for the new UI to load.

• Touring the Interface

• Various other pages throughout.

HMG/HSG can now be deployed on Microsoft Hyper‑V environments.

• Hyper-V Quick Start Guide

Streaming routes now include thumbnails, providing you a quick preview of your streams.

Note

Enabling thumbnail previews may impact system performance if you have a lot of running routes.

• Streaming Screen

• System Details

Working with large numbers of routes, inputs, and outputs is easier than ever! Organize related routes, inputs, and outputs with labels and quickly search with labels and text search.

• Streaming Screen

• Managing Labels

• Step 1 Add Input

• Step 2 Add Output

• Step 3 Create Route

On fresh non-cloud installations (not upgrades) you are now prompted to change the default web interface and Console UI passwords during first sign in of each account.

• Accessing the Web Interface (Gateway 100)

• Accessing the Web Interface (Gateway Server)

• Signing in to Your Hyper-V VM

• Signing in to Your Proxmox VM

• Accessing the Web Interface (VMware)

Added a new security option that lets administrators restrict web interface access to specific IP addresses or CIDR-based network ranges.

• Managing Web Interface Access

Monitor your system at a glance with the all-new system Dashboard. This dashboard collects all the important system metrics in a single place for easy access.

• Dashboard Screen

When Diagnostic Logging is enabled, the logs can now be cleared at any time to free up disk space.

• Enabling Diagnostic Logging

As most functions are not supported in the cloud, access to the Console UI is now disabled in the Gateway Cloud instances.

• Resetting haiadmin Password on Cloud Instances

When launching Gateway in AWS, you no longer need to reboot the instance and web login is possible as soon as the web interface is available.

• Signing in to Your Gateway

Created a procedure for adding a second network interface for VMware and Proxmox virtual environments.

• Proxmox: Adding a Second NIC

• VMware: Adding a Second NIC

(SRT Gateway only) Initial support for pairing with Hub 360, including the ability to remotely apply an SRT Gateway license, update SRT Gateway firmware, and securely access the SRT Gateway interface via SSH tunneling.

Note

For more information on using these features in Hub 360, see the Hub 360 documentation.

• Pairing SRT Gateway with Haivision Hub 360

HMP is now available as a bootable ISO image, enabling streamlined deployment and virtualization within the Proxmox Virtual Environment.

• Proxmox Quick Start Guide

Added support for stream redundancy for RTP outputs (SMPTE 2022.7 "Seamless Protection Switching of RTP Datagrams").

• Section 4 Destinations

Added support for TLS v1.3 cipher which is enabled by default.

• Security

Added support for Instance Metadata Service v2 (IMDS v2) on AWS VM launches.

• Creating a Virtual Server

Added support for Haivision Media Gateway and SRT Gateway on Google Cloud.

• Google Cloud Quick Start Guide

Removed CPU requirements for AVX and AVX2 support.

• Installing the Virtual Appliance

Added ability to set a password expiration duration for web UI accounts.

• Setting a Password Expiration Duration

Added Unrecovered Packets statistic for SRT streams.

• Stream Statistics Field Descriptions

Upgraded operating system to Oracle Enterprise Linux 9.

• N/A

(Media Gateway only) Due to the upgrade to the HMG/HSG operating system, the hash function used for pairing with HMP has changed from SHA-1 to SHA-512. Therefore, ensure the major versions of both your HMP and Gateways are the same. For instance, if your HMP is at version 4.0+, your Media Gateways must also be at version 4.0+.

• Pairing the Gateways with Media Platform

Due to the upgrade to the HMG/HSG operating system, changed implementation for U.S. Federal Information Processing Standard (FIPS) Publication 140-2 and high-security (STIG) environments. (The STIG enable button was removed.) Please contact your Haivision Support representative to enable FIPS and STIG in your installation.

• Security

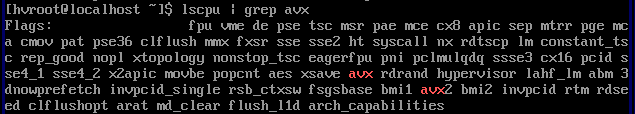

Due to the upgrade to the HMG/HSG operating system, MongoDB 5.0+ requires CPU support for AVX and AVX2 instructions. Therefore, ensure your virtual machine's CPU supports those instructions. For example, the following is sample output after issuing the lscpu | grep avx command that confirms support:

• Installing the Virtual Appliance

• Known Issues and Solutions

Due to the upgrade to the HMG/HSG OS and OpenSSL 3, any PKCS#12-formatted certificates generated with an older OpenSSL version must be converted before they can be added to HMG/HSG 4.0+.

• Importing and Activating a Certificate

• Convert Unsupported Certificates to Use in HMG/HSG 4.0+

Added IPv6 support throughout. This addition equips HMG and HSG with dual-stack functionality, allowing you to harness the benefits of both IPv4 and IPv6 protocols, ensuring long-term network compatibility and facilitating the transition to the IPv6 addressing scheme.

• Configuring the Network

• Network Settings

Added support for RTP stream redundancy (SMPTE 2022.7 "Seamless Protection Switching of RTP Datagrams"). This feature enhances the reliability of video transmission by seamlessly switching between redundant RTP streams, ensuring uninterrupted content delivery even in the face of network disruptions.

• Section 2 Source

For increased network security, ICMP redirect messages are now disabled by default. A toggle was added to re-enable them.

• Network Settings

Release of the new Generation 3 version of the Gateway 100 appliance.

• Gateway 100 Appliance Quick Start Guide

Added API command to start/stop individual route destinations.

• Start or Stop Routes and Destinations

Changed SRT source's Bandwidth Overhead option to Retransmission Bandwidth, which is a new field available in SRT version 1.5.3 offering improved control of bandwidth for retransmission of lost packets.

• Section 4 Destinations

• Destinations Object Model

Added Lost Packets to the available statistics of RTP source streams.

• Stream Statistics Field Descriptions

Updated to SRT version 1.5.3

• N/A

Added support for IPv6.

Note

SRT streams in rendezvous mode are not supported when IPv6 addressing is used.

• Configuring the Network

• Network Settings

ICMP redirect messages are now disabled by default. A toggle was added to re-enable them.

• Network Settings

Release of the new Generation 3 version of the Gateway 100 appliance.

• Gateway 100 Appliance Quick Start Guide

Added support for SRT's Authenticated-Encryption with Associated-Data (AEAD) feature.

• Section 3 Protocol Settings

• Section 4 Destinations

Added Undecrypted Packets statistic for SRT source streams.

• Stream Statistics Field Descriptions

Added ability to configure number of undecrypted packets prior to SRT reconnection.

• Configure Number of Undecrypted SRT Packets before Reconnection

Added API endpoint to download route statistics.

• Download Route Statistics

Updated instructions for enabling FIPS cryptographic modules. The dynamic_path definition is now the same for each config file.

• Enabling/Disabling FIPS Cryptographic Modules

Upgraded to SRT version 1.5.2.

• N/A
