Starting a Live

You can start a live manually or you can enable the Auto-live at startup. See Enabling/Disabling Auto-Live at Startup.

Unit Panel

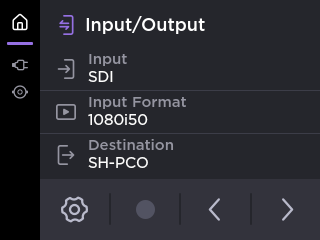

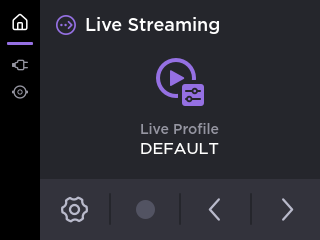

Before starting a Live, you can check the configuration set previously for the device.
From the Home screen, tap AR_arrow_right_thin.png to display information:


  1. From the Home screen, tap the preview thumbnail on screen.

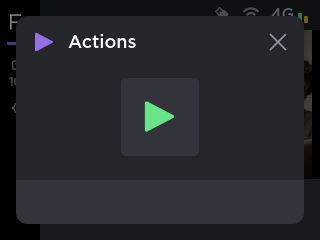

  2. Tap AR_play_filled_green.png .

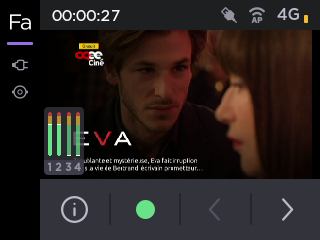

    The video preview appears on screen and AR_stop_circle_filled_green.png appears in the bottom bar.


Note

When Auto-record is enabled, tap the screen to have additional indications:


A- Remaining recording time possible on SD card
B- Space used on SD card
C- Source Standard
D- End-to-end Latency

Connection Loss during a Live with Simultaneous Record

Recordings of your Live events will continue even if the network connection is lost and Live is interrupted.

If the network connection is lost:

  1. You will receive an error message.


  2. Tap OK to return to the Live preview, where you will see the recording still in progress.

    2_when OK key _screenshot_20230406_012014.bmp

  3. Tap  AR_arrow_left_thin.png to view the resolution and remaining recording time possible on the SD card.

    3bis_ alternatively with 3_screenshot_20230406_012039.bmp
Web Interface

To start the Live:

  1. On the Dashboard, in the Streams section, click the  Settings icon icon to check that the unit settings are configured and selected as required.

Note

If you enable the Auto-Record option, the video file is automatically recorded during the live.

  1. Click the Save button.

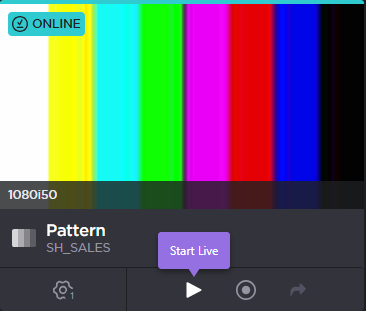

  2. Click the  AR_play_outlined_grey.png  icon to start the Live.


To stop the Live:

  1. Click the  AR_stop_filled_grey.png  icon.

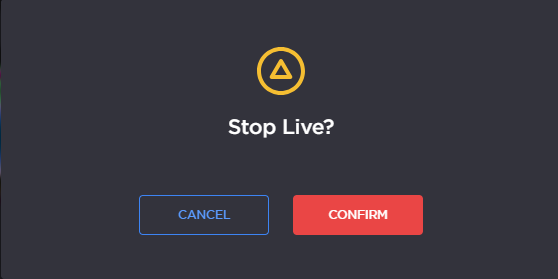

  2. Confirm to stop the video transmission.


Connection Loss during a Live with Simultaneous Record

Recordings of your Live events will continue even if the network connection is lost and Live is interrupted.


Network loss will be indicated by the No Network warning on the Live preview panel. When this occurs, you have the option to:

  • Stop the Live and the Recording by clicking the  AR_stop_filled.png icon,

  • Stop the Recording only by clicking the  AR_record_off.png icon.

Note

The Forward  AR_forward.png function is disabled when network connection is lost.

Camera

Note

Before starting a live, ensure that the Live profile and the Destination profile have been configured. Please see Configuring Live Profiles.

  • Press the camera's REC button.

The Live is in progress.
