Finding Required Values in Entra ID

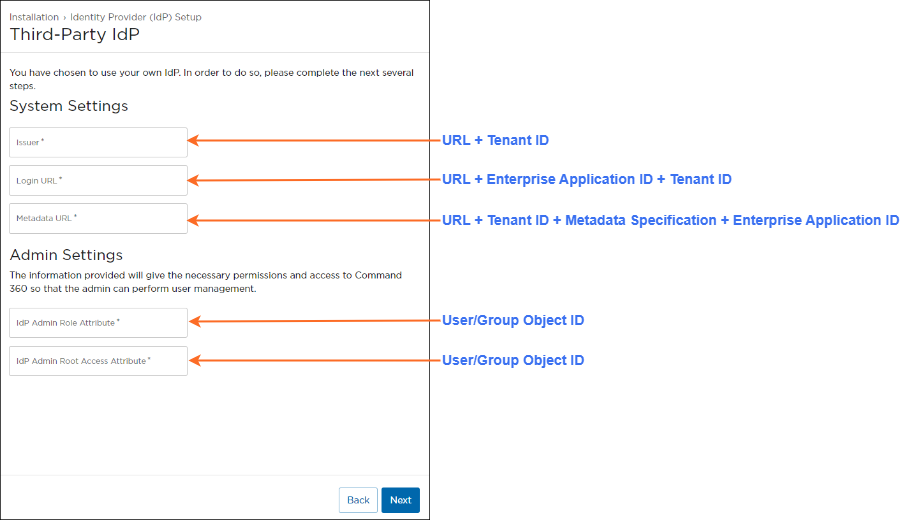

This section describes how to find the required System and Admin Settings for setting up a Third-Party Identity Provider (IdP) after completing the previous four tasks in this section to configure SAML SSO in Microsoft Entra ID.

Copy the following URLs and Object ID from your Entra ID Enterprise Application page.

Note

In the context of SSO/SAML endpoints, all URLs are case-sensitive.

Issuer

Navigate to: Enterprise Applications > Manage > Single sign-on > (4) Microsoft Entra Identifier

Example: https://sts.windows.net/0000a00a-b11b-2c22-d3d3-ee44e4444e44/ (URL + Tenant ID)

Login URL

Navigate to: Enterprise Applications > Manage > Properties > User access URL

Example: https://launcher.myapps.microsoft.com/api/signin/a000aaaa-1b11-2cc2-d3d3-4eeeeee4e4ee?tenantId=0000a00a-b11b-2c22-d3d3-ee44e4444e44 (URL + Enterprise Application ID + Tenant ID)

Metadata URL

Navigate to: Enterprise Applications > Manage > Single sign-on > (3) App Federation Metadata URL

Example: https://login.microsoftonline.com/FederationMetadata/2007-06/FederationMetadata.xml?appid=a000aaaa-1b11-2cc2-d3d3-4eeeeee4e4ee (URL + Tenant ID + Metadata Specification + Enterprise Application ID)

IdP Admin Role Attribute

Navigate to: Enterprise Applications > Manage > Users and groups > Click the user/group name > Copy the Object ID

Example: a00000aa-11bb-2cc2-d333-4e444ee444e4

IdP Admin Root Attribute

Navigate to: Enterprise Applications > Manage > Users and groups > Click the user/group name > Copy the Object ID

Example: a00000aa-11bb-2cc2-d333-4e444ee444e4

Audience URL

Navigate to: Enterprise Applications > Manage > Single sign-on > (1) Identifier (Entity ID)

Value: https://haivision/external/identity

Note

This value is the same for all Command 360 environments as of 2024-09-20.

Assertion Consumer Service URL

Navigate to: Enterprise Applications > Manage > Single sign-on > (1) Reply URL (Assertion Consumer Service URL)

Example: https://manager.example.com/Haivision/Authorization/Saml2/Acs
