Ethernet Connection

eNote

Default credentials are provided by the Important Notice Card delivered with the unit.

  1. From the unit panel Home menu, tap AR_networks.png . The screen displays the IP address assigned to the unit (by default in DHCP mode).

  2. On your computer launch a web browser and enter the unit IP address and append ":8888" to it. Example: 192.168.1.139:8888

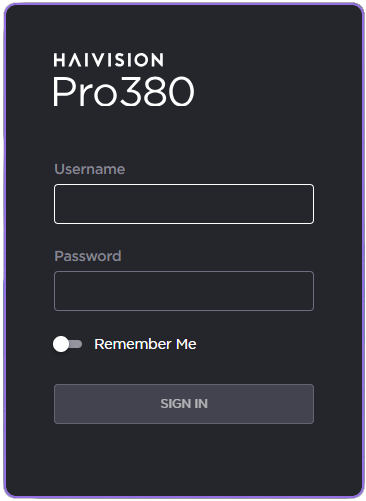

    The sign-in screen opens:


  1. Enter the username and the default password.

  2. If this is your first sign-in to the transmitter, you are prompted to change the default password. Enter a new password following the recommendations in the New Password field and click the Change button.


  1. From the unit panel Home menu, tap Network icon . The screen displays the IP address assigned to the unit (by default in DHCP mode).

  2. On your computer launch a web browser and enter the unit IP address and append ":8888" to it. Example: 192.168.1.139:8888
    The sign-in screen opens:


  1. Enter the username and the default password.

  2. If this is your first sign-in to the transmitter, you are prompted to change the default password. Enter a new password following the recommendations in the New Password field and click the Change button.

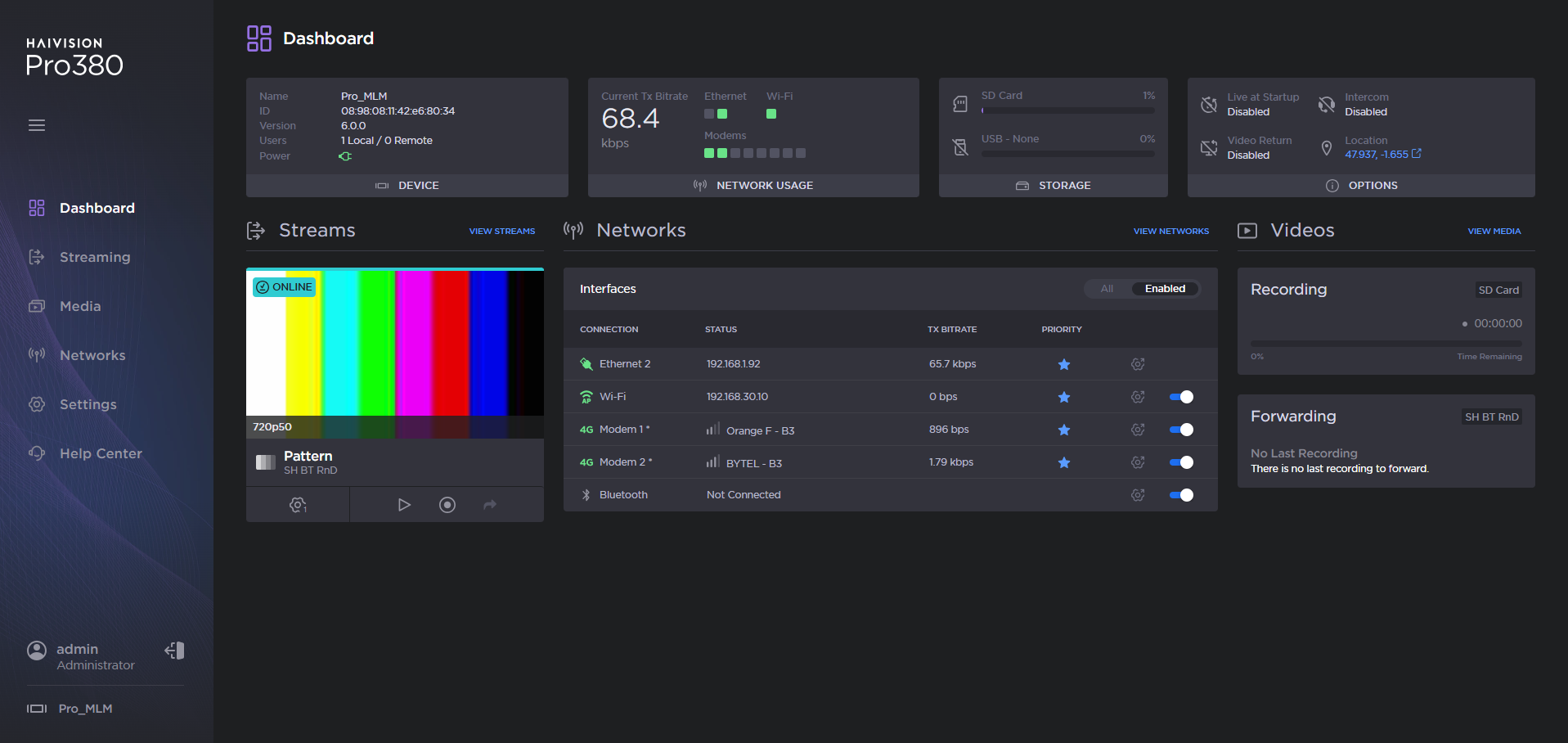

The web interface opens:
