Transmitters

Ethernet Connection

eNote

Default credentials are provided by the Important Notice Card delivered with the unit.

  1. From the unit panel, at the Home menu, use the wheel to select Network icon . The screen displays the IP address assigned to the unit (by default in DHCP mode).

  2. On your computer launch a web browser and enter the unit IP address and append ":8888" to it. Example: 192.168.1.139:8888

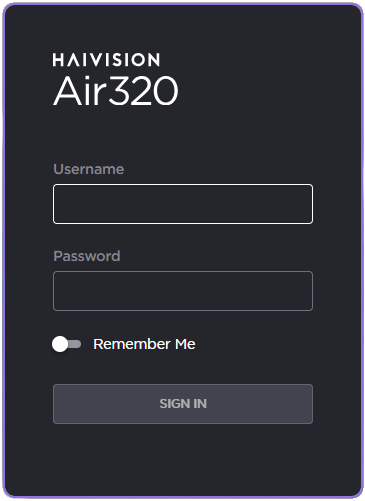

    Thesign-in screen opens:

  3. Enter the username and the default password.

  4. If this is your first sign-in to the transmitter, you are prompted to change the default password. Enter a new password following the recommendations in the New Password field and click the Change button.

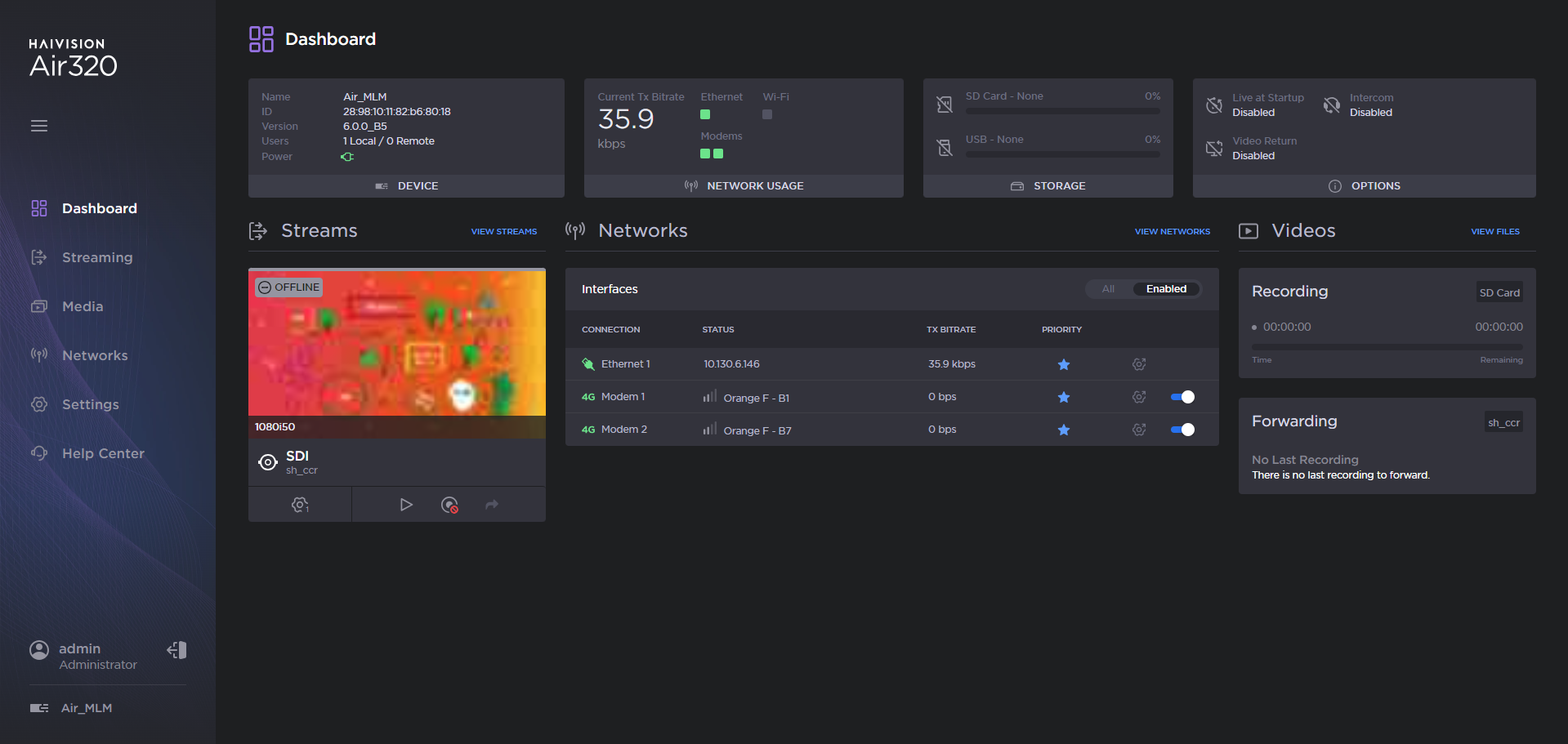

The web interface opens:
