Configuring a Broadcast Live Profile

Unit Panel

1. From the Home menu, tap > > .

2. Tap the Profile Name field and enter a new profile name.

3. Tap to confirm the new profile name.

4. Tap the Application field and and choose between Bcast (SRT) or Bcast (SST).

5. Tap the End-to-End Latency field to adjust the latency.

6. Tap and tap the BGAN profile field to select a BGAN profile if required.

Note

To select a BGAN Profile, ensure that one already exists. See Configuring a BGAN Profile.

9. Tap the Encoder Type field and choose between H.264/AVC and H.265/HEVC.

10. (SST Live Profiles only) Tap the Bitrate Control field and choose between VBR and CBR.

11. Tap the Capped Bitrate field to enter a new bitrate.

12. In the Audio settings, tap the Channel Layout field and choose between: 1x Mono, 1x Stereo, 2x Mono, 2x Stereo, 4x Mono, 4x Stereo, 8x Mono, and No audio.

13. Tap the Bitrate field to adjust bitrate.

14. Tap and select ADVANCED+.

Note

Advanced parameters are only available if the Encoder Type is H.264.

17. Tap the toggle button to enable I and P frames only.

18. Tap the toggle button to enable Manual Resolution.

19. If you enabled Manual Resolution, tap the Resolution field to display the resolution list, and select the resolution you want to apply.

Note

Only downscaling or same resolution are supported.

20. Tap to save the new Broadcast Live Profile settings.

Web Interface

1. In the sidebar, click Streaming > Live.

2. Click the Add Profile button.

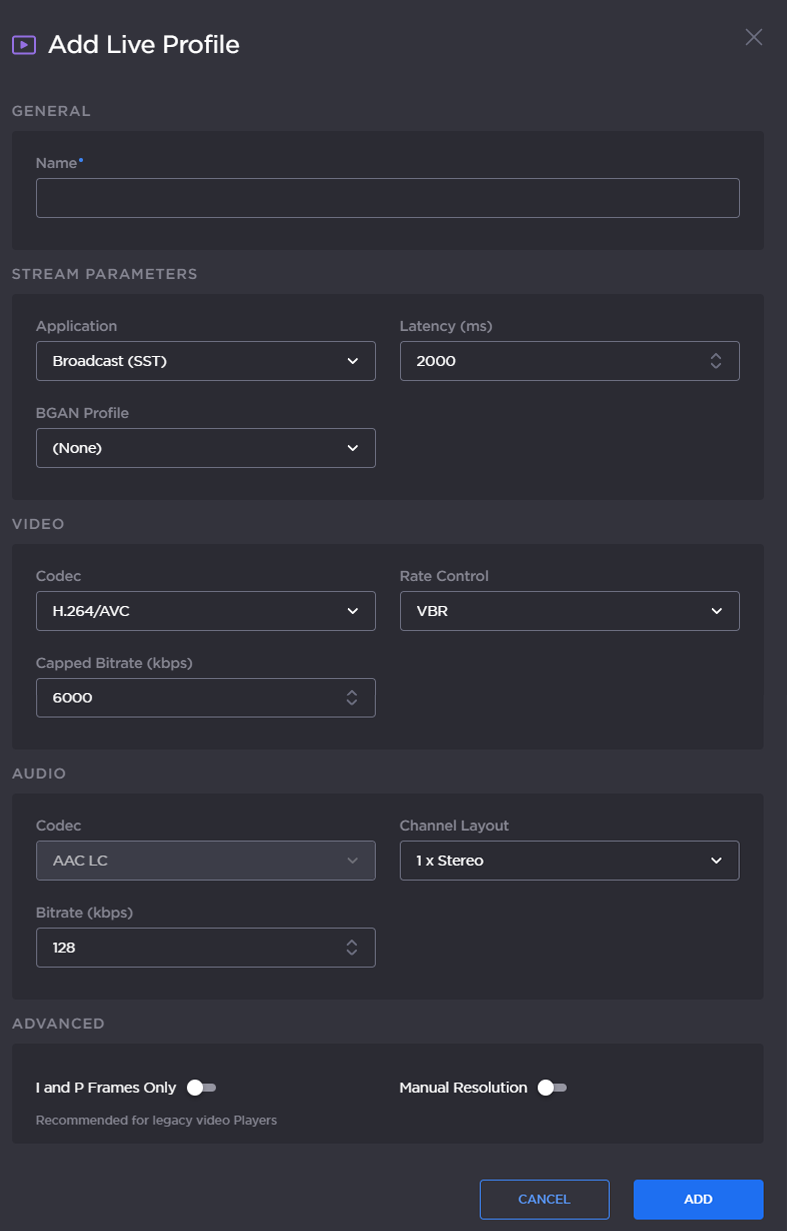

3. The Add Live Profile dialog appears.



4. Enter a profile name in the Profile Name field.

5. Fill in all parameters. For details on Broadcast Live Profile parameters, see Configuring Live Profiles.

Note

To select a BGAN Profile (SST Live Profiles only), ensure that one already exists. See Configuring a BGAN Profile.

6. Click the Add button.
