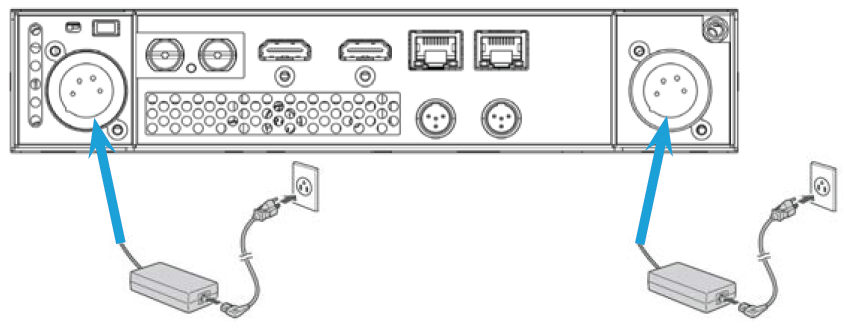

Connect the AC/DC adapter and the power cable.
Note
The unit can operate on a single power supply. However, we recommended connecting both power supplies.
-

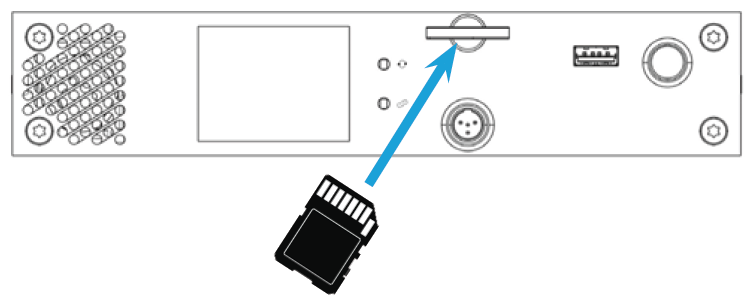

Insert an SD card.
-

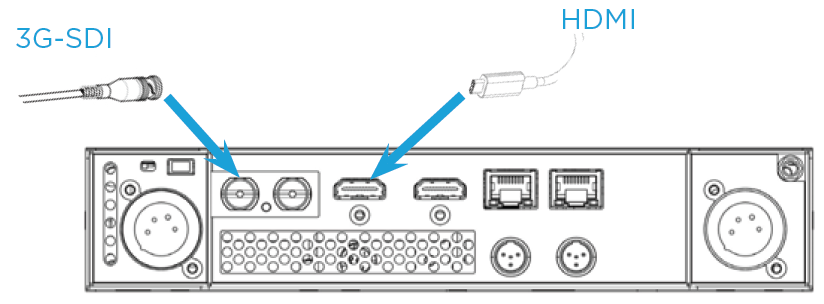

Connect the video input cable, either HDMI or SDI.
-

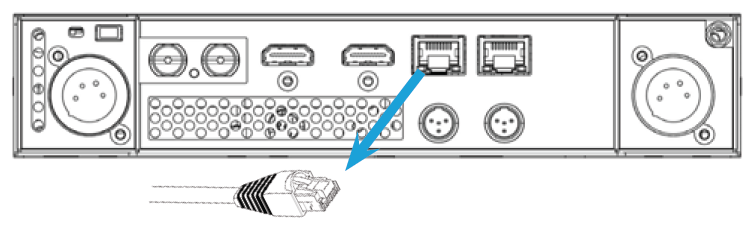

Connect the Ethernet cable to the ETH1 port.
Note
The network must have a DHCP server.
