The LED colors and flashing (blinking) speed indicate the status (operational state) of the Makito X encoder.

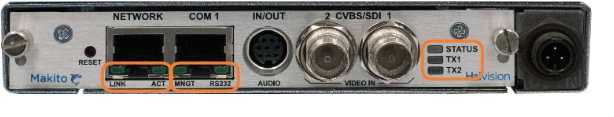

LED Status Indicators (Rear Panel)
General
|
Function |
Description |
Indication |
|---|---|---|
|
STATUS |
No power |
Encoder is powered off. |
|
Green fast blinking |
Reset button is pressed for less than four seconds. If the Reset button is not pressed, there is a power fault. |
|
|
Green slow blinking |
Booting/Initialization |
|
|
Green solid |
Booting/Initialization sequence is complete (No fault/OK). |
|
|
Red fast blinking |
Reset button is pressed for more than four seconds (Factory Reset enabled). |
|
|
Red slow blinking |
Reset button is released after the Red fast blinking state (executing Factory Reset). |
|
|
TX1 / TX2 [SDI]
|
Off |
Encoder is powered off. Note Each TX LED is associated with the corresponding BNC connector. |
|
Amber solid |
Either of the conditions below is sufficient to turn the LED amber:
|
|
|
Green solid |
Valid video input detected (i.e., you have signal lock). |
|
|
DVI-A / DVI-D |
Off |
No valid signal is recognized; both LEDs are off. |
|
Green solid |
For DVI-D, a valid digital signal is plugged in. For DVI-A, a valid analog/component signal is plugged in. |
Network Port
|
Function |
Description |
Indication |
|---|---|---|
|
LINK
|
Off |
Not connected |
|
Green blinking once per second |
Connected at 10 Mbps |
|
|
Green blinking twice per second |
Connected at 100 Mbps |
|
|
Green blinking three times per second |
Connected at 1000 Mbps |
|
|
ACT
|
Off |
No activity |
|
Green intermittent |
Little activity (e.g., management). The LED should be lit when there is activity. |
|
|
Green solid |
Intense activity (e.g., transmitting video traffic) |
COM1 Port
|
Function |
Description |
Indication |
|---|---|---|
|
MNGT |
Off |
Port configured in Metadata Capture Mode |
|
Green solid |
Port configured in Management Mode |
|
|
RS232 |
Off |
Port configured in RS-422 |
|
Green solid |
Port configured in RS-232 |
