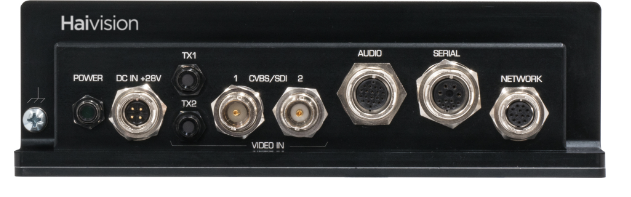

The Makito X HEVC Rugged enclosure provides rugged connectors for connecting the encoder's Video, Audio, Serial, and Power inputs, as well as the Network interface. All connectors are located on the front panel, as well as three LEDs that indicate power and video encoding status.

The following tables list the encoder connectors and LEDs:

Connectors

Connector	Description	Number of Contacts
Power Entry Connector	DC IN +28V Power Connector Hirose P/N LF10WBRB – 4P	4
Video Input Connectors	2X Coax BNC Jack Amphenol P/N 112235-12	1 per coax
Analog Audio Input Connector	Hirose P/N LF13WBRB – 20S	20
Serial Connector	Hirose P/N LF13WBRB – 11S	11
Ethernet Connector	Hirose P/N LF10WBRB – 12S	12

Note

Hirose Cable Assemblies: Cabling must be done using the Hirose LF Series Connector Termination and Assembly Instructions.

LED Status Indicators

LED	Description	Indication
POWER	Power Status	Bi-color power indicator (Green when power is OK): Slow blinking green when powering up. Solid green when booted. Fast blinking green, and after 5 seconds fast blinking red, when starting Reset. Slow blinking red and then back to power up (i.e., slow blinking green) during Reset.
TX1	Video Encoder Status	Bi-color (Green or Amber) Green when video detected; amber when no video detected (Channel 1)
TX2	Video Encoder Status	Bi-color (Green or Amber) Green when video detected; amber when no video detected (Channel 2)

LED

Description

Indication

POWER

Power Status

Bi-color power indicator (Green when power is OK):

Slow blinking green when powering up.
Solid green when booted.
Fast blinking green, and after 5 seconds fast blinking red, when starting Reset.
Slow blinking red and then back to power up (i.e., slow blinking green) during Reset.

TX1

Video Encoder Status

Bi-color (Green or Amber) Green when video detected; amber when no video detected (Channel 1)

TX2

Video Encoder Status

Bi-color (Green or Amber) Green when video detected; amber when no video detected (Channel 2)
