The Makito XCR enclosure provides rugged connectors for connecting the encoder's Video, Audio, Serial, and Power inputs, as well as the Network interface.

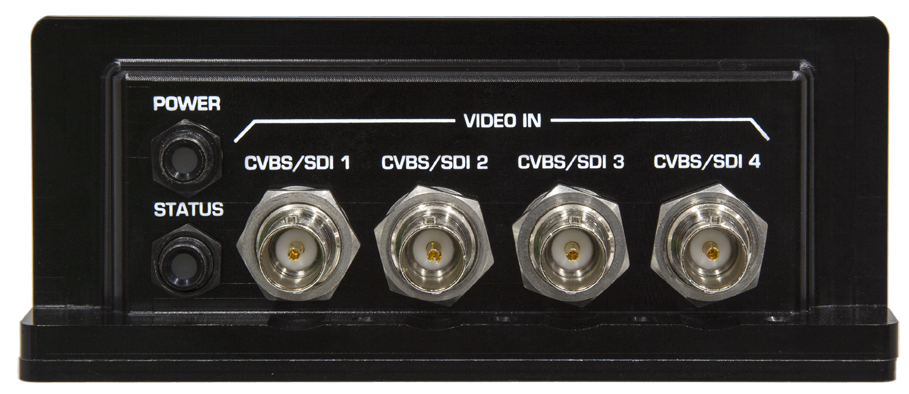

LEDs and Video Inputs are located on the front panel:

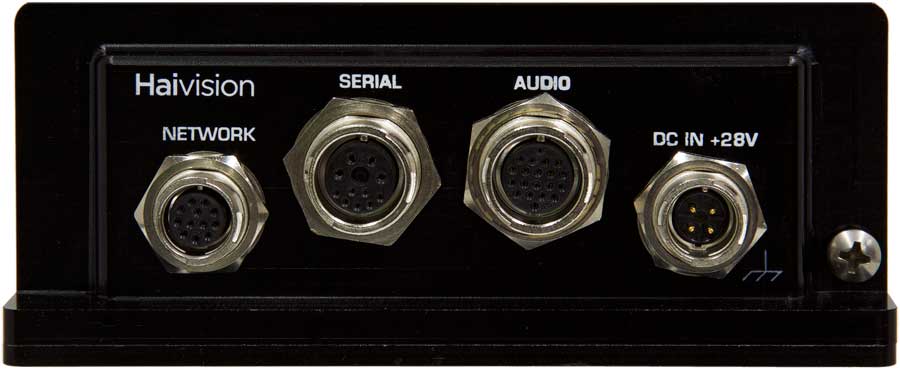

Network, Serial, Audio, and Power connectors are located on the rear panel:

Connectors Front View

Connector	Description	Number of Contacts
Video Input Connectors	4X Coax BNC Jack Amphenol P/N 112235-12	1 per coax

Connectors Rear View

Connector	Description	Number of Contacts
Ethernet Connector (Network)	Hirose P/N LF10WBRB-12S	12
Serial Connector	Hirose P/N LF13WBRB-11S	11
Analog Audio Input Connector	Hirose P/N LF13WBRB-20S	20
Power Entry Connector	DC IN +28V Power Connector Hirose P/N LF10WBRB-4P	4

Note

Hirose Cable Assemblies: Cabling must be done using the Hirose LF Series Connector Termination and Assembly Instructions.

LED Status Indicators

LED	Description	Indication
POWER	Power Status	GREEN when power is ON
STATUS	Video Encoder Status	Bi-color (GREEN or RED)
