Note
The same BNC connector is used for Composite and Serial Digital Interface (SDI) Video Input and Embedded Digital Audio Input.
To connect the Makito X SDI Audio/Video Interface:
-
Video In: Connect your Video Source cable(s) to one or both of the encoder's Video Inputs, using the BNC connectors:
-
Composite (CVBS) Video
-
SDI Video/Audio (either SD, HD, or 3G-SDI)
-
-
Analog Audio In: Connect your Audio Source cable to the encoder's 8-pin Mini-DIN connector (shown below).
-
For unbalanced audio, use the 8-pin audio to 3-RCA female cable adapter (included in the package, shown below).
-
A balanced audio cable adapter is available from Haivision upon request. (See Audio Breakout Cables.)
-

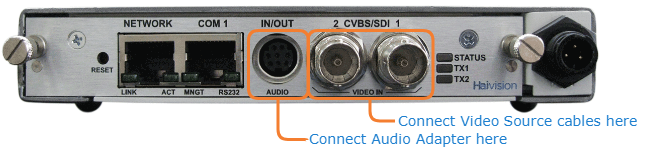

SDI-I Input Connections (#S/B-292E-HDSDI2)
Audio to RCA Female Cable Adapter (Unbalanced)
Note
Selection between analog and digital (SDI) audio may be done via the Web interface or the Command Line Interface (CLI).
Related Topics:
-
See Audio Connector Pinout for the balanced/unbalanced audio pinout.
-
To configure the encoders, see Video Encoder Settings (Web interface), or videnc (CLI).
