Enclosure Front and Rear Panels
The Makito XCR enclosure provides rugged connectors for connecting the encoder's Video, Audio, Serial, and Power inputs, as well as the Network interface.

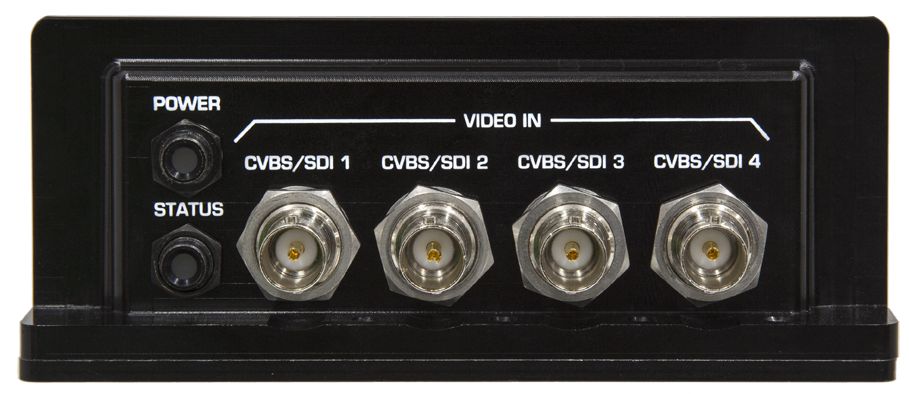

LEDs and Video Inputs are located on the front panel:

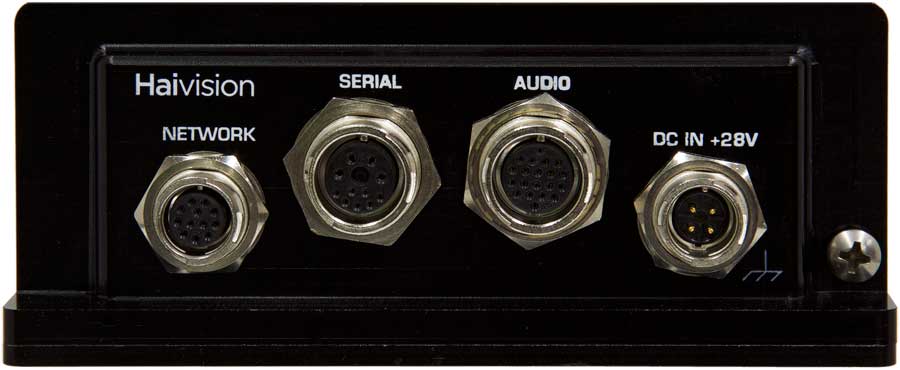

Network, Serial, Audio, and Power connectors are located on the rear panel:
Connector | Description | Number of Contacts |
|---|---|---|
Ethernet Connector (Network) | Hirose P/N LF10WBRB-12S | 12 |
Hirose P/N LF13WBRB-11S | 11 | |
Hirose P/N LF13WBRB-20S | 20 | |
| Power Entry Connector | DC IN +28V Power Connector Hirose P/N LF10WBRB-4P | 4 |
Note
Hirose Cable Assemblies: Cabling must be done using the Hirose LF Series Connector Termination and Assembly Instructions.
