Ethernet Connector

The Makito XCR video encoder allows for connectivity with one 10/100/1000 Gigabit Ethernet port over CAT-5 unshielded twisted pair per IEEE 802.3ab. The naming convention is per IEEE STD 802.3. This port is designated as GBE0.

Network Connector


On Unit

Mating Connector

Manufacturer

Hirose

Hirose

Connector Type

Network Connector

Network Connector

Part Number

LF10WBRB-12S

LF10WBP-12P or
LF10WBP-12P(31)

Ethernet

Network Connector Pinout

Contact #

Description

1

ETH A+

2

ETH A-

3

ETH B+

4

ETH B-

5

ETH C-

6

ETH C+

7

ETH D-

8

ETH D+


Ethernet GBE0 Pin Locations

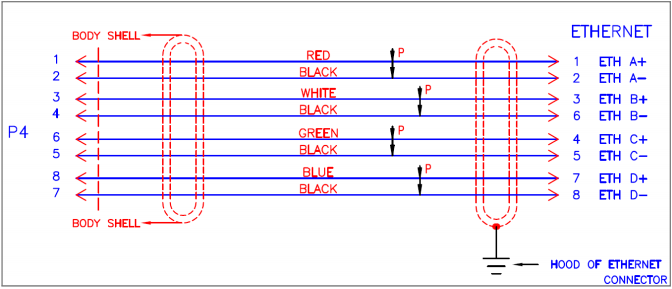

Ethernet Wiring Diagram

Ethernet Connector Pinout Diagram

For the connector and cable, see Step #2 in Connecting the Makito XCR to the Network and Audio/Video Sources.
