Overview

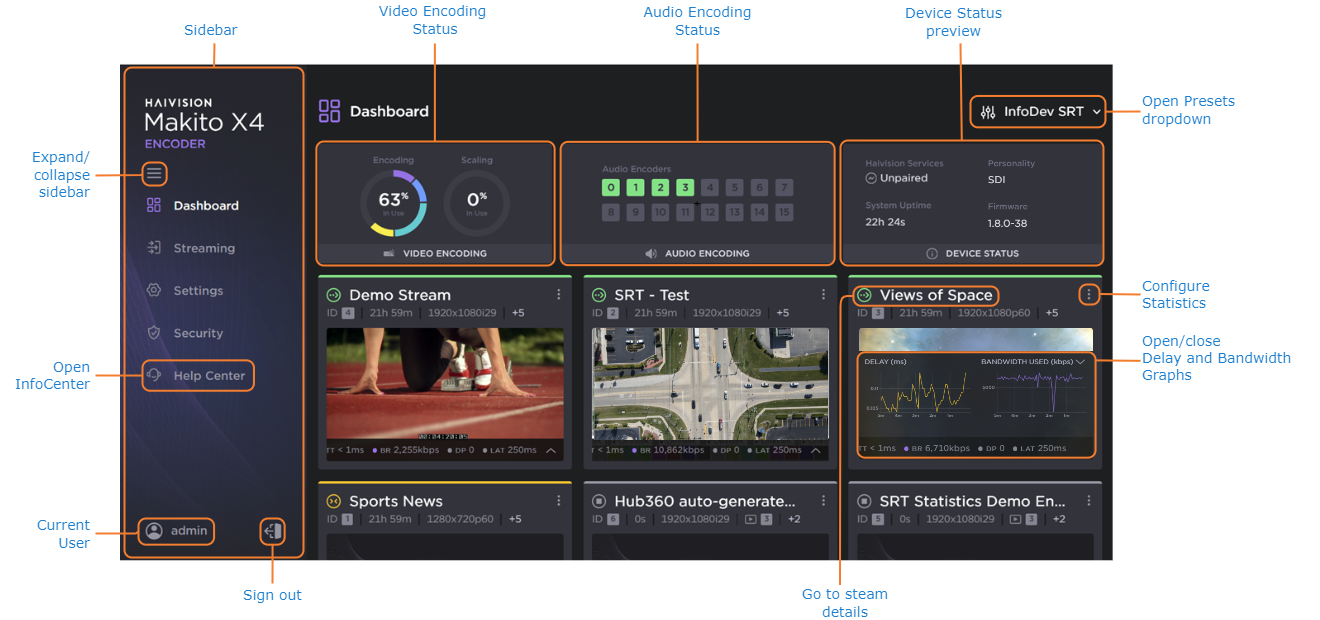

From the Dashboard you can use the sidebar to navigate to the Streaming, Settings, and Security sections, to access documentation through the Help Center, or to Sign Out of the decoder. For details, see Exploring the Web Interface.
The dashboard also provides visual references to quickly asses the state of each stream, as well as video and audio encoding overviews, and the device status.
The following sections describe the Makito X4 Encoder Dashboard functionality.
System Monitoring
The dashboard provides users with key system information, including:
-

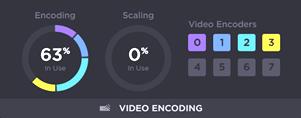

Video Encoding and Scaling resources in use, as well as the number of Video Encoders in use.
Click Video Encoding here to go to the Video Encoders page.
-

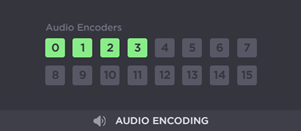

The number of Audio Encoders in use.
Click Audio Encoding here to go to the Audio Encoders page.
-
The Device Status information.
Click Device Status here to go to the System page.
Stream Monitoring
The Dashboard provides users with information to monitor their streams, and configure their stream preview panels. Users can:
-

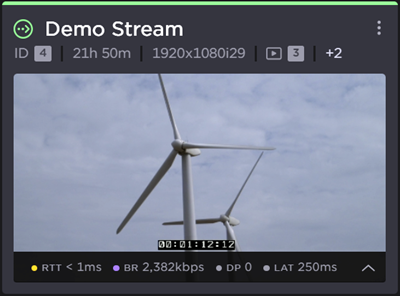

View previews of each stream being encoded.
-
Click the stream name to go to the Streams page and view the stream details.
-
Click the More Options
-
Reset Statistics (for the individual stream)
-
View the Detailed Statistics
-
Hide Statistics (on the stream preview)
-
Hide Statistics: All Streams (on all stream previews)
-
-

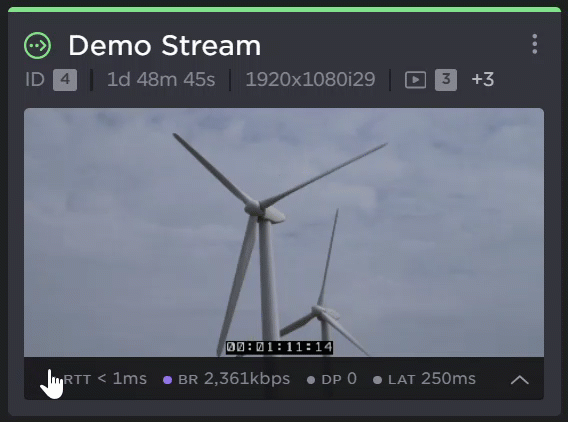

Hover over statistics preview to view related tooltips.
-

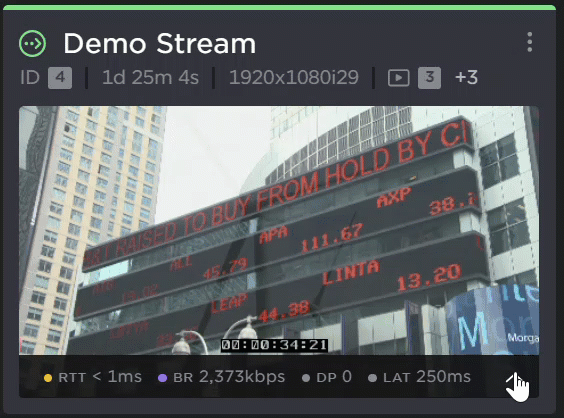

Hover over the stream preview to view graphs tracking the Delay and Bandwidth for SRT streams.
Clicking
