Configuring Video Encoders

From the Video Encoders pages, you can configure up to eight video encoders to apply to streams. Each encoder can be configured independently and assigned to multiple outputs to support multi-bitrate streaming. You can start and stop each video encoder, as well as display statistics.

The Makito X4 supports concurrent AVC/H.264 and HEVC/H.265 video encoding.

Note

On systems licensed for SMPTE ST 2110 input with the Personality set to ST 2110, the available inputs for video encoders are ST 2110 essences. For more information, see Configuring ST 2110 Inputs.

Video Encoders List View

1. Click the



    Streaming icon on the toolbar and click Video Encoders on the sidebar.

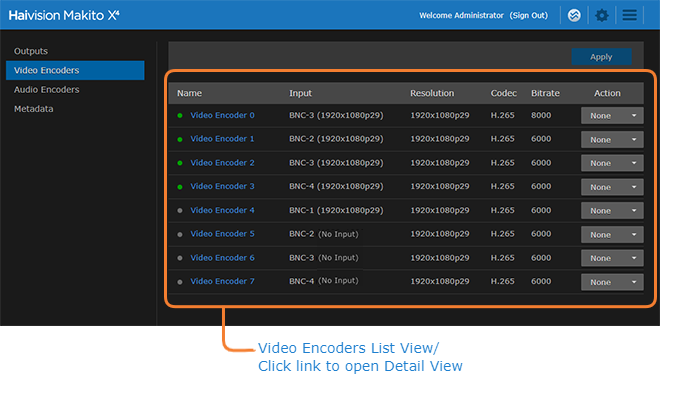

   The Video Encoders List View opens.







   The Video Encoders List View displays the status LED, Name, Input format, Resolution, Codec (Algorithm), and Bitrate for each video encoder.

2. From here, you can perform the following tasks:
   • To view details or modify the video settings for an encoder, click a link in the table to open the Video Encoder Detail View.
   • To change the status for an encoder, click the drop-down list under Action and select either Start or Stop (as applicable).
3. To apply your changes, click Apply.
