Configuring SRT Path Redundancy

You can configure the Makito X4 encoder to use redundant transport paths to ensure that content arrives at the decoder during an event. The Makito X4 encoder supports SMPTE 2022-7 style Path Redundancy in SRT Listener and Caller modes. The same content is sent over two SRT connections and network paths. If there is a failure on one of the transport links, the switchover to the other link will be seamless with no glitch on the video output and no interruptions.

Starting with v1.4, you can also configure Active-Backup from the Web Interface (previously only via the CLI). This update allows an SRT listener to accept one non-redundant connection on any of the paths configured, or two redundant connections.

Important

To enable path redundancy the Makito X4 encoder (as well as the destination decoder, Haivision Media Gateway (HMG), or SRT Gateway) must be equipped with dual NICs.

To configure SRT path redundancy for a stream:

1. Follow the steps in Configuring Secure Reliable Transport (SRT) to set up the SRT stream.
2. On the Outputs Detail View, select TS over SRT for the protocol and Caller or Listener for the mode.

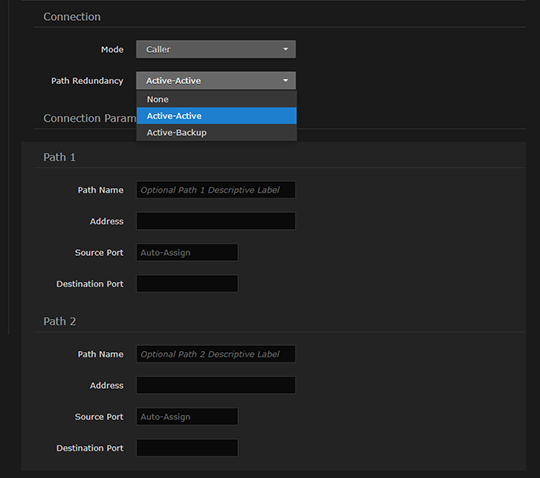

3. If you selected Caller mode, as in the following example, select either Active-Active or Active-Backup for Path Redundancy and fill in the Destination Parameters for each path.
   If you selected Listener mode, most of the redundancy settings will have to be configured on the caller (decoder or gateway) side. On the listener side, be sure to configure the port and optional alternate port to match the value(s) used on the caller.
   See Output Settings >"SRT Settings" for more details.




4. To configure redundant transport paths, select eth0 for the Interface for one path and eth1 for the other path.

5. Fill out the remaining Connection, SRT Access Control and Link Parameters.
6. Click Create to start the stream connection.

7. Click the Statistics button to see how the SRT streams are performing.

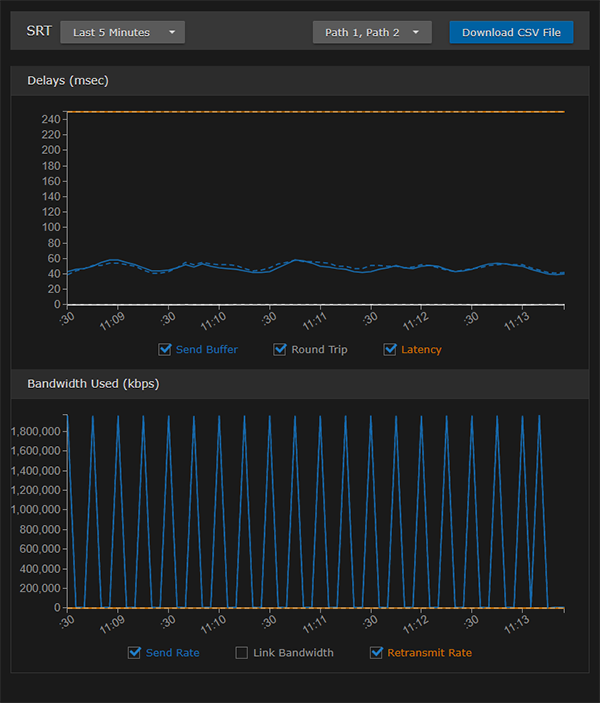

   The following example shows the graphical statistics display for redundant transport streams:









   Note

   You can select which path to display, or both, from the Path 1, Path 2 drop-down. The CSV file merges both paths.

Related Topics

• Output Settings
• Output Statistics
• "Haivision Path Redundancy: Hitless Failover for Resilient Video Streaming Over Unpredictable Networks" (White paper, available on https://www.haivision.com/resources/white-paper/haivision-path-redundancy/)
