Configuring Audio Encoders

From the Audio Encoder pages, you can configure up to sixteen independent audio channels to apply to one or multiple streams. You can also start, mute, and stop each audio encoder, as well as display statistics for the encoder.

The Makito X4 is capable of encoding up to 32 channels of audio in channel pair groups.


On systems licensed for SMPTE ST 2110 input with the Personality set to ST 2110, the available inputs for audio encoders are ST 2110 essences. For more information, see Configuring ST 2110 Inputs.

Audio Encoders List View

To open the Audio Encoders List View:

  1. On the Streaming page, click Audio Encoders on the sidebar.
    The Audio Encoders List View opens.

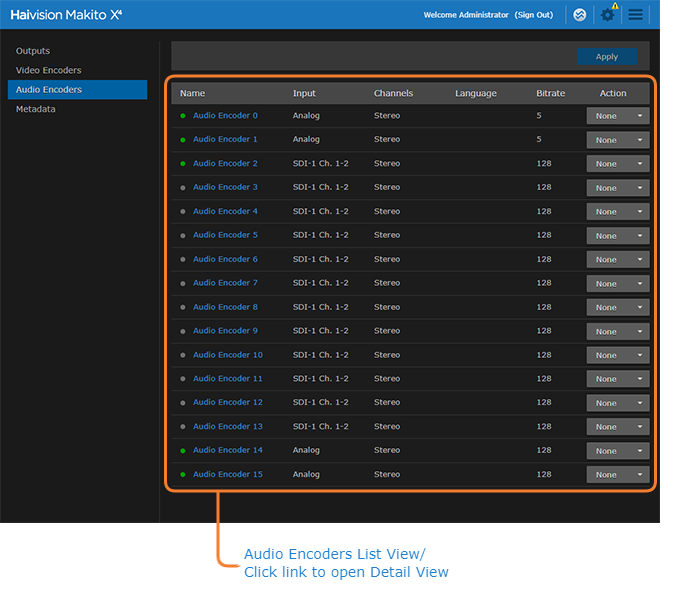

    The Audio Encoders List View displays the status LED, Name, Input, Channel Mode, Language, and Bitrate for each audio encoder.
  2. From here, you can perform the following tasks:
    • To view details or modify the audio settings for an encoder, click a link in the table to open the Audio Encoder Detail View.
    • To change the status for an encoder input, click the drop-down list under Action and select either Start or Stop (as applicable), or Mute.
  3. To apply your changes, click Apply.
