Setting Up a Second Stream

To create a second stream:

1. On the Streams List View, click the Add Stream button.

2. Follow the steps in (1.3 2) Setting Up Streams to configure the second session, with the two following exceptions:

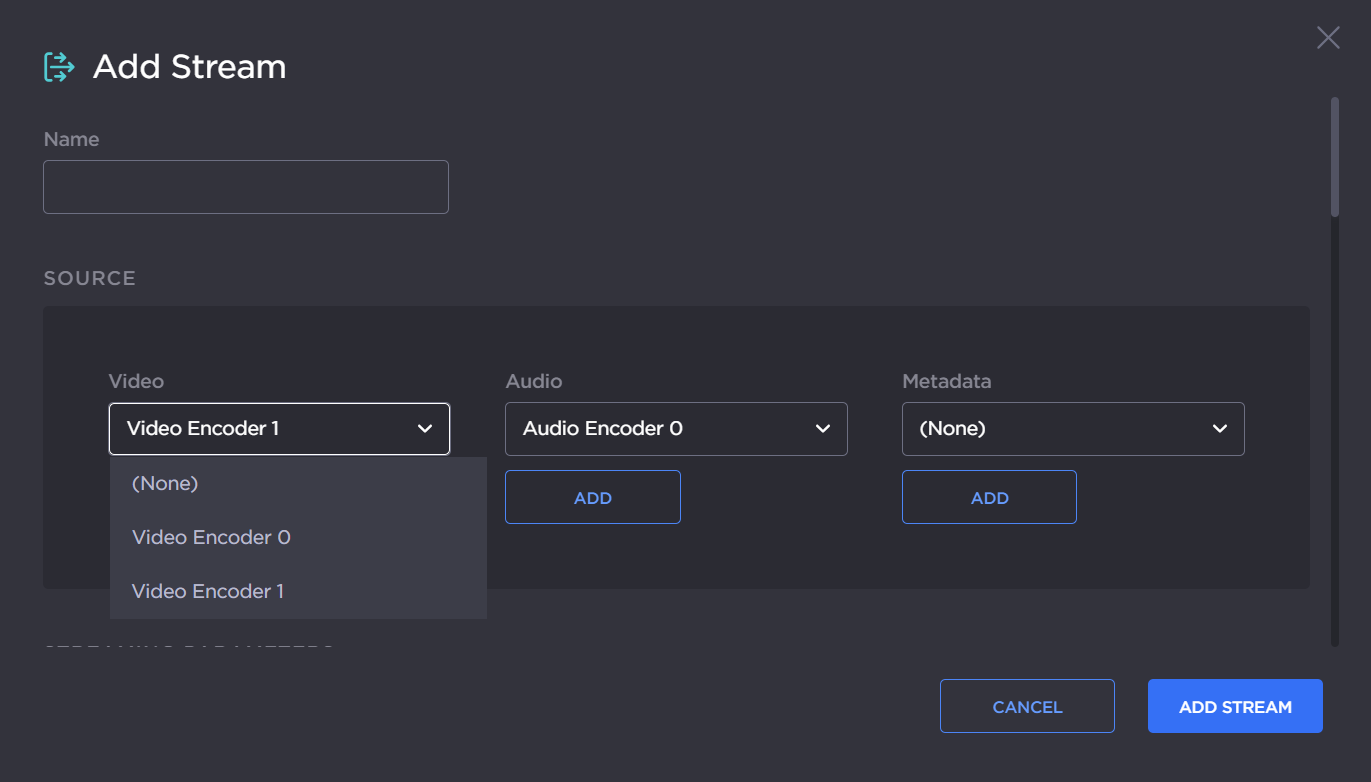

   1. For the Video Source, select a different Video Encoder. For example, if you selected Video Encoder 0 for the first stream, now select Video Encoder 1 (to capture input from SDI Input 2, as shown in the following example).



   2. Under Destination, use a different Port number, for example, 2400.

3. Click Add Stream again to start streaming.
