Configuring Serial Metadata Sources

Note

The Makito X1 automatically creates the Serial metadata source if the COM Port Mode is set to Metadata. See (1.3 2) Managing the COM Port.

You can configure the Makito X1 to extract either KLV or CoT metadata packets from the serial port. You must specify the Data Format, and for CoT metadata, the Max AirCraftSPI Delta.

To configure the Serial metadata source:

  1. From the Metadata List View, click the Settings icon AR_settings.png on the Serial metadata source (i.e., the first source in the list).

  2. On the Serial Source Detail View, type in the Name for the source.

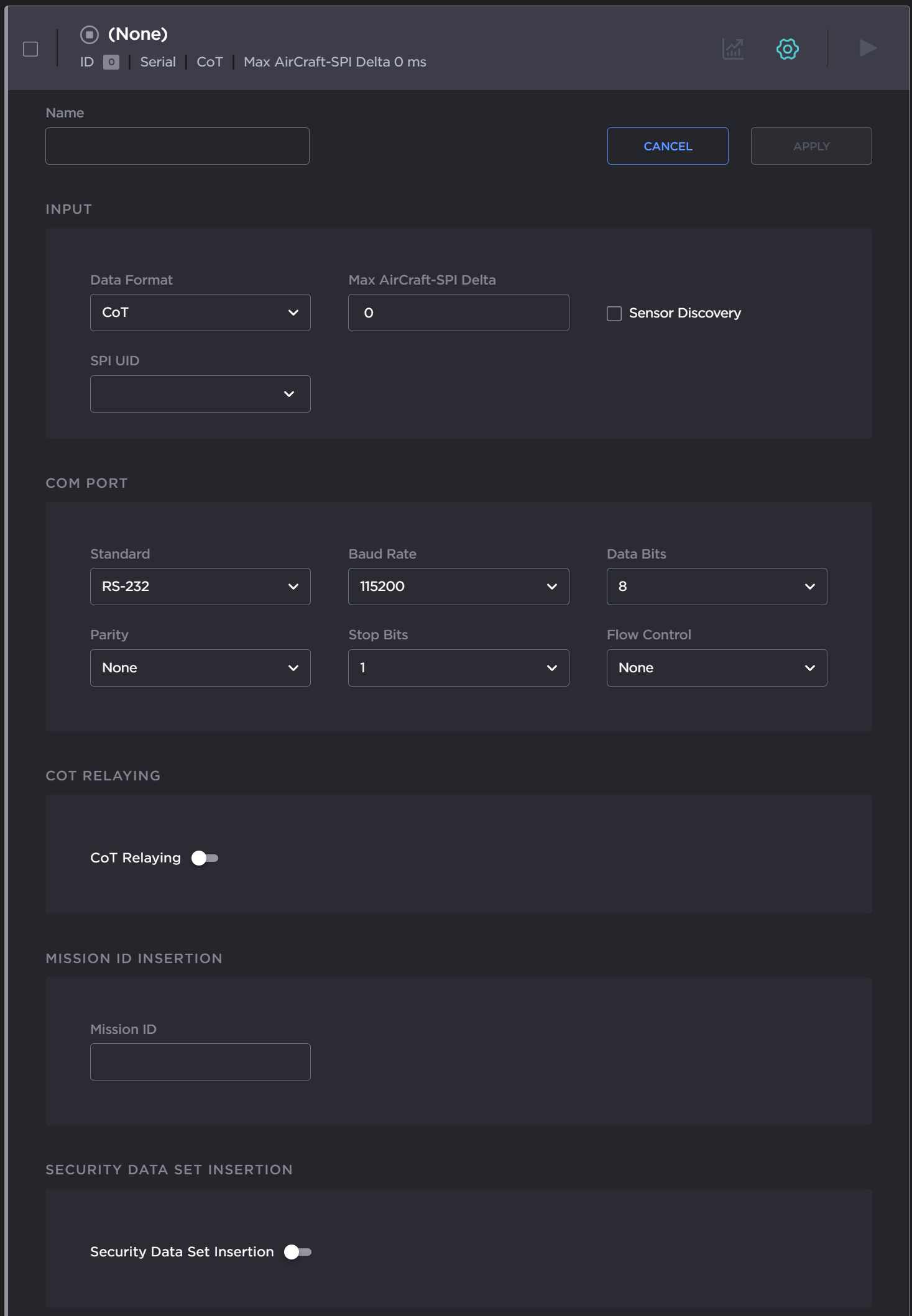

    MX1_Metadata serial.png


    Input and COM Port Settings

  3. If CoT has been installed, select CoT for the Data Format (under Input Settings).

  4. Select or enter the remaining value(s). For details on the Metadata fields, see (1.3 2) Metadata Settings

    CoT Relaying

  5. (Optional) To set up CoT retransmission, see Configuring CoT Retransmission.

    Mission ID/Security Data Set Insertion

  6. (Optional) To configure a mission ID or security data to replace or insert, see Configuring KLV Metadata Insertion.

  7. To apply your changes and start the Metadata stream, click Apply.

  8. To start or stop the stream, click the Start/Stop icon AR_play_filled.png / AR_stop_filled.png (as applicable)

  9. To view Metadata statistics, click the Statistics icon AR_stats_2.png . For details, see (1.3 2) Metadata Statistics.

  10. To retract the Metadata Source Detail View, click the Settings icon AR_settings.png again.
