Configuring Output Parameters

To view and configure Output parameters:

  1. From the Outputs List view, click the
    Add button or click any line in the table.
  2. On the Outputs Detail View, type in a unique name for the output and an output URL, for example,  udp://239.100.100.100:4900.

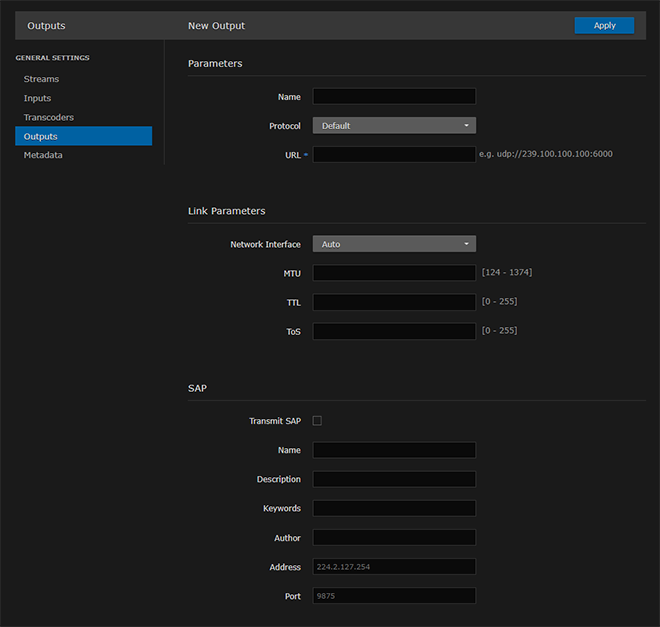

    Outputs Detail View
  3. Select or enter values in the fields to define the output. See Output Settings.

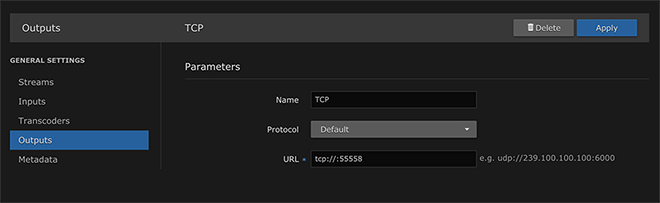

  4. To configure TCP output, you simply need to enter the output port, as shown in the following example. (Decoders can receive this output by sending a request over TCP to the Kraken IP/Port. For example, to configure VLC to receive the stream from Kraken, enter the url tcp://10.70.5.23:55558 into the url field for a network stream.)

  5. To modify link parameters, such as the MTU (Maximum Transmission Unit) size, TTL (Time-to Live for stream packets), or To (Type of Service) values, type these in.
  6. To configure SRT output, select TS over SRT for the source and then complete the additional fields under SRT Settings. See SRT Output Settings.

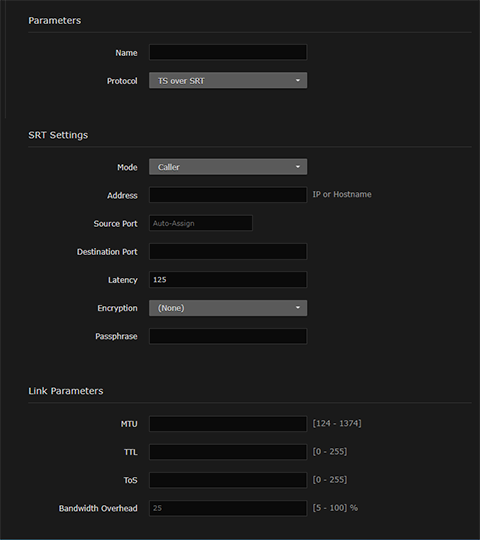

    SRT Settings Fields

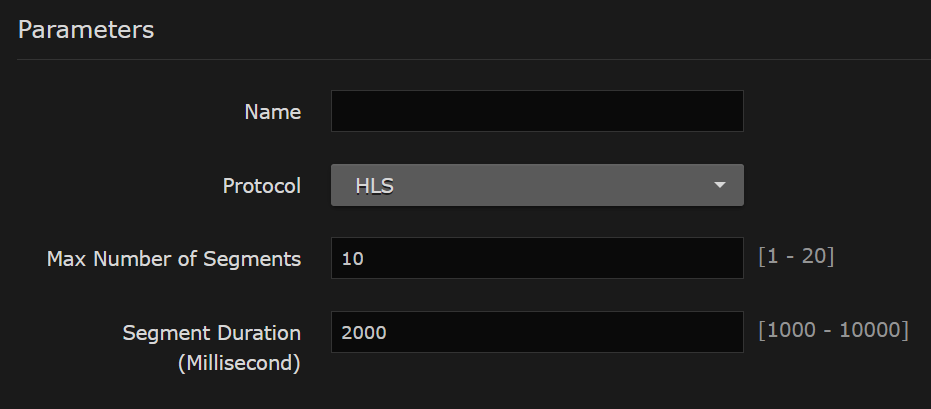

  7. To configure HLS output, select HLS from the Protocol dropdown, and fill in the Max Number of Segments (default set to 10) and Segment Duration (default set to 2000ms).


    For more information on using the HLS protocol, see 'Protocols' in Output Settings.

  8. To apply your changes, click Apply.
    The new output is added to the Outputs List.

    Tip

    You can access Output statistics from the Streams Statistics page, including SRT Statistics graphs. For more information, see Viewing Kraken Statistics.
