Route Builder

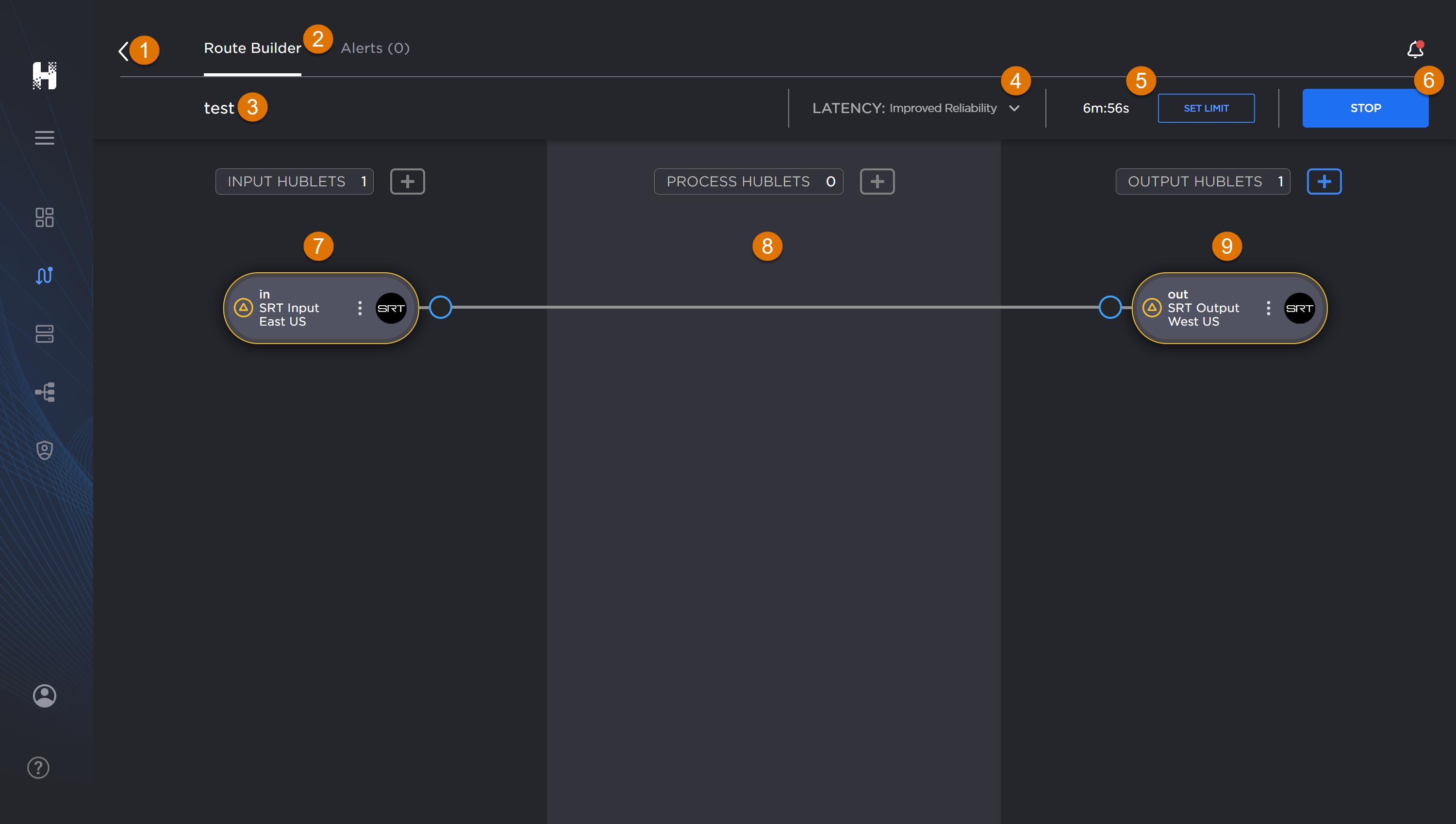

Route Builder Tab

To access the Route Builder tab, click the route's name in the route listing of the Routes screen.

Back Button – Returns to the Routes tab.

Route Builder – Current tab.

Route's Name

Latency Setting

Route Duration/Adjuster

Stop Button

Input Hublet – Click Hublet to open Configuration panel.

Connection

Output Hublet – Click Hublet to open Configuration panel.

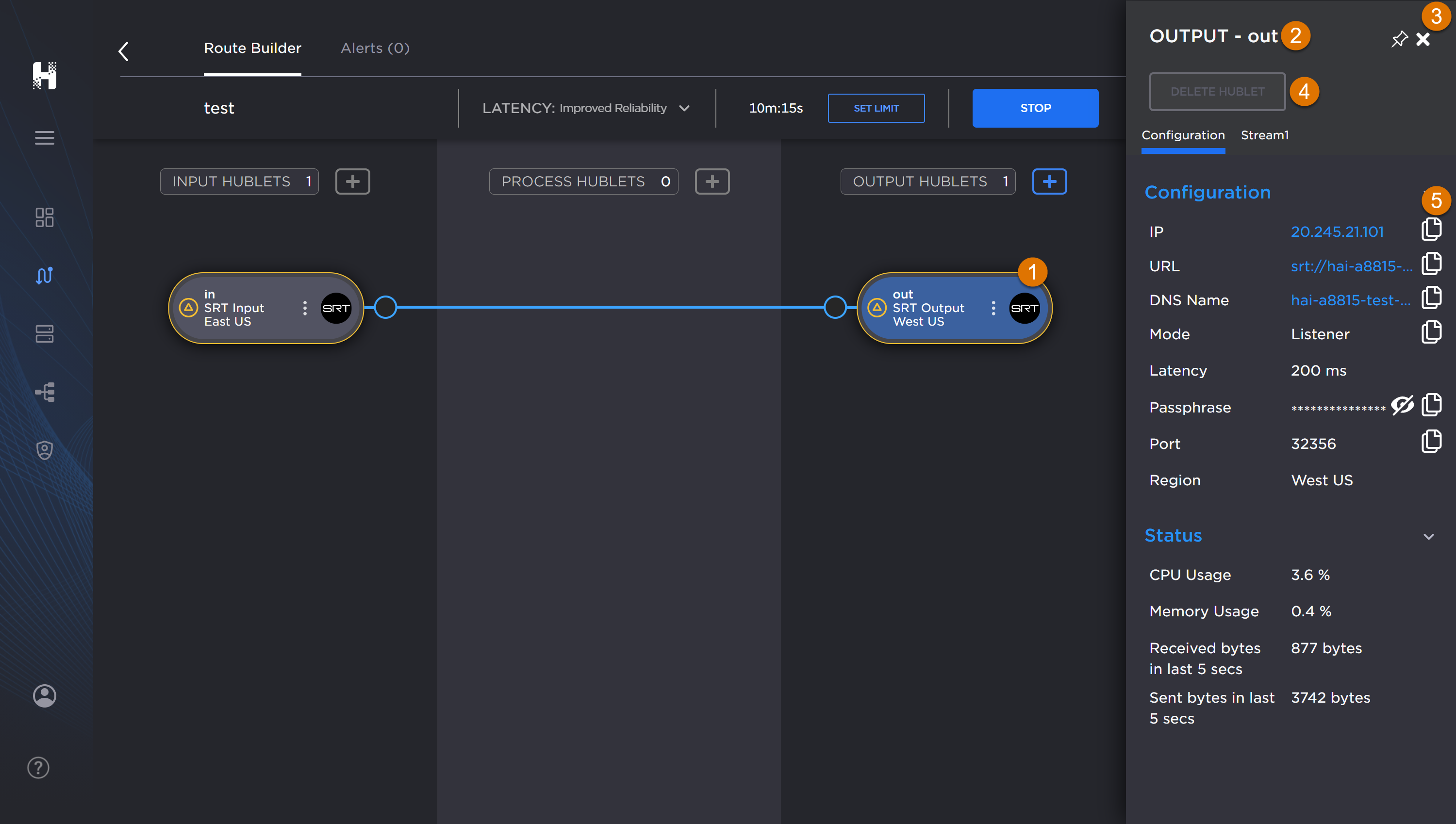

Hublet Configuration Panel



Selected Hublet – shown in blue.

Hublet Name

Close Panel Button

Delete Hublet Button

Copy Field Contents Option
