Replacing the F-MB21X-R Chassis Fan Tray


You can remove and replace the fan tray without powering off the unit, which allows you to perform this maintenance procedure without stopping the service.

However, do so only if you are able to replace the fan tray within five minutes. Otherwise, we recommend that you power off the unit before replacing a fan tray to avoid overheating.

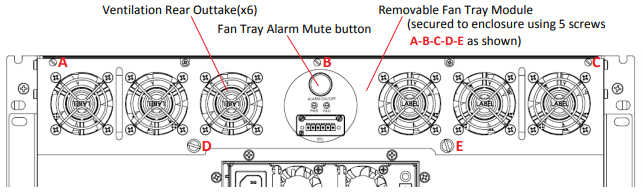

F-MB21X-R Removable Fan Tray Module

To replace the F-MB21X-R Chassis fan tray:

Refer to "F-MB21X-R Fan Tray LED Indicators and Alarms" under MB21 Removable Fan Tray (F-MB21X-R) to determine when to replace the fan tray. During a failure condition, the Fan LED on the fan tray will show red.


Refer to "Antistatic Precautions" in Safety Information to prevent ESD damage to the equipment.
  1. Using a flat screwdriver, loosen all five captive screws (A-B-C-D-E) on the fan tray by turning them counterclockwise. Note that the screws are spring-attached to the panel.
  2. If an RTU cable is connected, disconnect the cable.
  3. Remove the fan tray by pulling it away from the chassis. Set it on an antistatic surface or repack it in packing materials.
  4. Insert a new fan tray in the slot and slide it all the way into the chassis until the captive screws make contact with the chassis.
  5. Tighten the five screws to lock the fan tray into the slot.
  6. If the device is powered on, listen for the fans. You should immediately hear them operating. If you do not hear them, ensure that the fan tray is inserted completely in the chassis.
  7. Verify that the Power LED is green. If the LED is not green, one or more fans are faulty. If this problem occurs, contact your customer service representative for a replacement part.

Replacement fan trays are available from Haivision. Please contact your sales representative or email Haivision at:
