This command adds a source to a session specified by the session ID. You specify the source using the source ID.

Tip

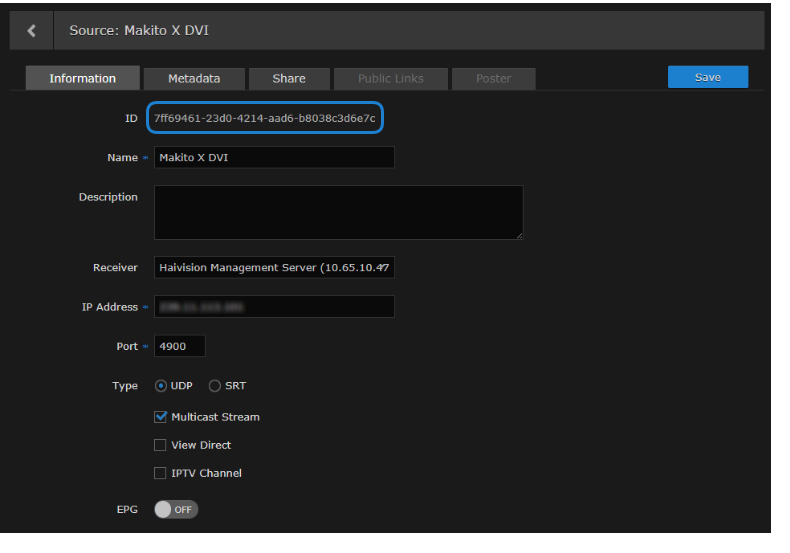

The source ID is generated by HMP when the source is defined. To add a source to a session, go the Web interface ( > Administration > Configuration > Sources and click on the desired source) to get the source ID.

Note

To create a multi-source session, you simply add up to four sources to a session, executing the addSourceToSession command once for each source you wish to add.

Authorizations: All

Requests

addSourceToSession sessionId sourceId

Parameters

Parameter	Description/Values
sessionId	The ID of a HMP session.
sourceId	The ID of a HMP source. See the Tip above to obtain the desired source ID.

Result

Success

OK

Error

Error	Description
`ERROR\|010003\|Expected 2 parameter(s).` `Got Y parameter(s)`	Calling `addSourceToSession` requires 2 parameters.
`ERROR\|010001\|'Y' is not a UUID`	The `sessionId` provided was not a valid UUID. OR The `sourceId` provided was not a valid UUID.
`ERROR\|060003\|Active recording currently` `in progress`	The session is being recorded. All recordings for this session must be stopped before a source can be added.
`ERROR\|070010\|Could not create a track`	Attempting to create a track for the source failed.
`ERROR\|040006\|Session not found`	The 'session' with UUID '`sessionId`' was not found.
`ERROR\|040009\|Source not found`	The 'source' with UUID '`sourceId`' was not found.
`ERROR\|060008\|Source already added to this` `session`	The source with UUID '`sourceId`' has already been added to this session.

Example

The following example adds a source to the session specified by ID 71edd346-2cf0- 4c62-b3d3-9d457b287394. The system returns OK.

addSourceToSession 71edd346-2cf0-4c62-b3d3-9d457b287394
b86befc3-7b44-4655-852f-21a77935d110

OK
