Switch to the LAN-based Gateway browser tab or enter the URL for the LAN-based Gateway web interface.
-
Click Add Route button to add a new route.
-

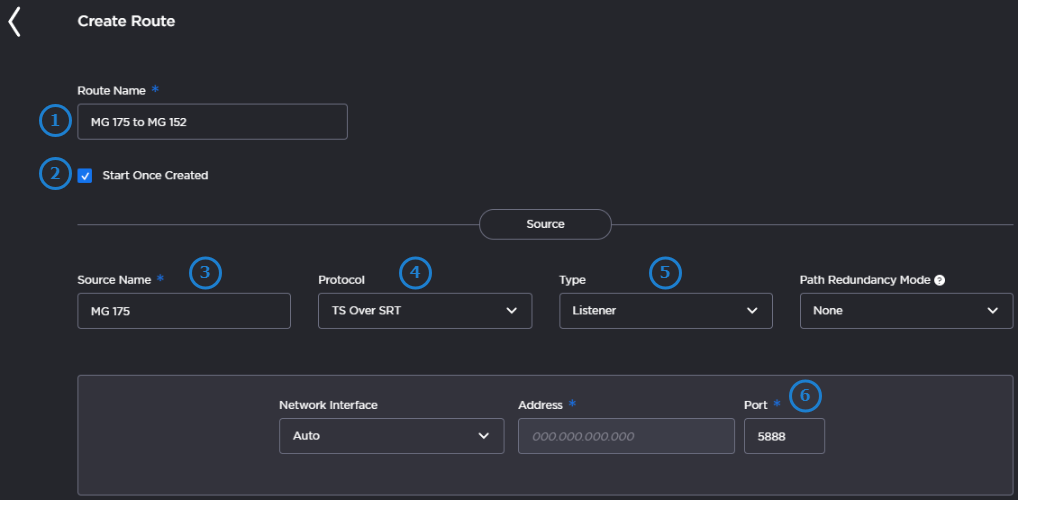

In the New Route screen:
-
Supply a (1) route name and check the (2) Start Once Created checkbox so that the stream starts after creation.
-
In the Source section, provide a (3) source name, the (4) protocol of "TS over SRT", and the (5) mode to "Listener".
-
Enter the (6) port.
-
Tip
If needed, switch to the appropriate browser tab or enter the URL for the LAN-based Gateway to acquire this information.
-
Click Add Destination.
-

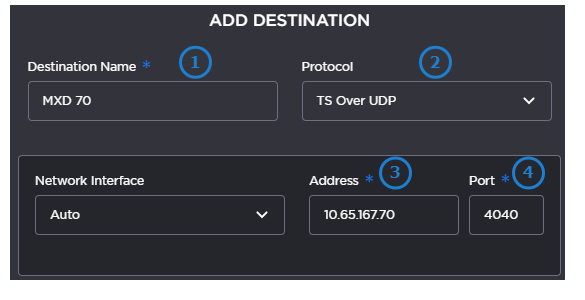

In the Add Destination dialog, enter the information for the Decoder:
-
Provide a (1) name and select the (2) protocol as "TS over UDP".
-
Enter the (3) address and (4) port information for the destination.
-
-
When finished, click Save.
-
In the New Route screen, click Apply.
