Adding Audio Processors

To add a new audio processor:

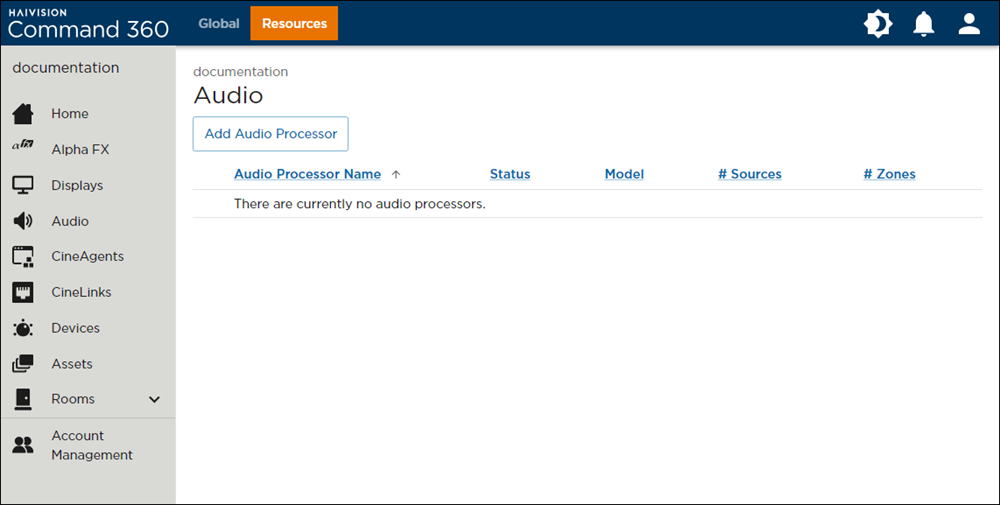

1. Click the user icon in the top right and click Admin > Resources.
2. Click the Audio option on the left navigation column.

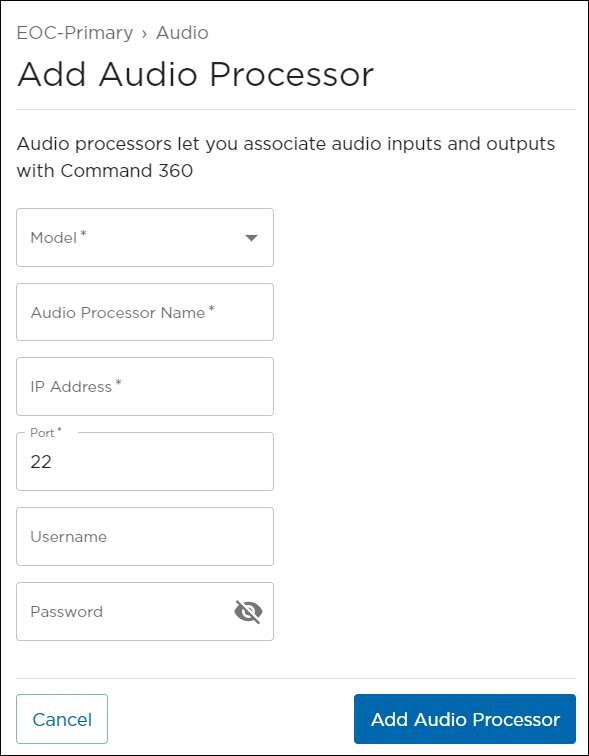

3. Click the Add Audio Processor button. The Add Audio Processor panel opens on the right.







4. Select the audio processor Model.
5. Enter an Audio Processor Name.
6. Enter the IP Address.
7. Enter the Port number.
8. Enter a Username and Password.
9. When finished, click Add Audio Processor. The new audio processor appears in the audio summary table. Notice the status indicates Finish Setup.







To finish setup, refer to the instructions for Configuring Audio Processors.
