Starting a Live (MultiMode)

You can start a live manually via the unit panel, web interface, or camera or you can enable the Auto-live at startup. See Enabling/Disabling Auto-Live at Startup.

Unit Panel

To start a live:

  1. From the Home menu, tap

    Play icon
    . The video preview appears on screen and the live profile selected is displayed. When tapping
    Arrow left icon
    or
    Arrow right icon
    , the Live menu displays additional information for each encoder.

    Enabling / Disabling encoder
    Selected Source
    Selected Live Profile
    Selected Destination Profile

    Note

    • Video source must be all SDI or all Pattern.
    • All inputs must have the same resolution and the same frame rate.

    You can modify settings before starting the Live action:

    • To select another Source:
      1. Tap the
        field.
      2. Tap a different source.
    • To select another Live profile:
      1. Tap the
         field.
      2. Tap a different Live profile.
    • To select another Destination profile:
      1. Tap the
        field.
      2. Tap a different Destination profile.
  2. Tap

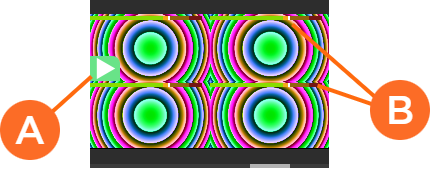

    to start the Live for all encoders. Video previews appear on screen.

    Live icon blinking when running
    Audio bars indicating audio levels

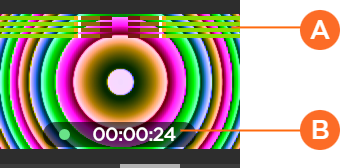

  3. Tap an encoder to display more information.

    A icon
    Audio bars indicating audio levels
    B icon
    Live duration
  4. Tap

    to display some indications about the Live action:

    A icon
    End-to-end Latency configured in the Live Profile or modified remotely from StreamHub interface
    B icon
    Network bitrate
    C icon
    Source standard
    D icon
    Live duration

    Note

    See the StreamHub User Guide to set another delay during Live operation.

  5. Tap
    to display all encoders and on
    to display additional information as the bitrate for each encoder or ancillary data.

To stop the Live for all encoders:

  1. Tap
    Arrow right icon
    .
  2. Tap
    Play off icon
    > Stop Live.

To stop the Live for a single encoder:

  1. Tap the preview of the encoder that you want to stop.
  2. Tap
    Arrow right icon
    .
  3. Tap
    Play off icon
    > Stop Live.
Web Interface

To start a live:

  1. On the Dashboard, in the Streams section, click the

    Settings icon
    icons under each stream to check the settings are configured as required (video source, live profile, and destination profile).

    Note

    • Video Source must be all SDI or all Pattern.
    • All inputs must have the same resolution and the same frame rate.
  2. Click the
    Play icon
    icon above the streams to start the Live for all encoders.

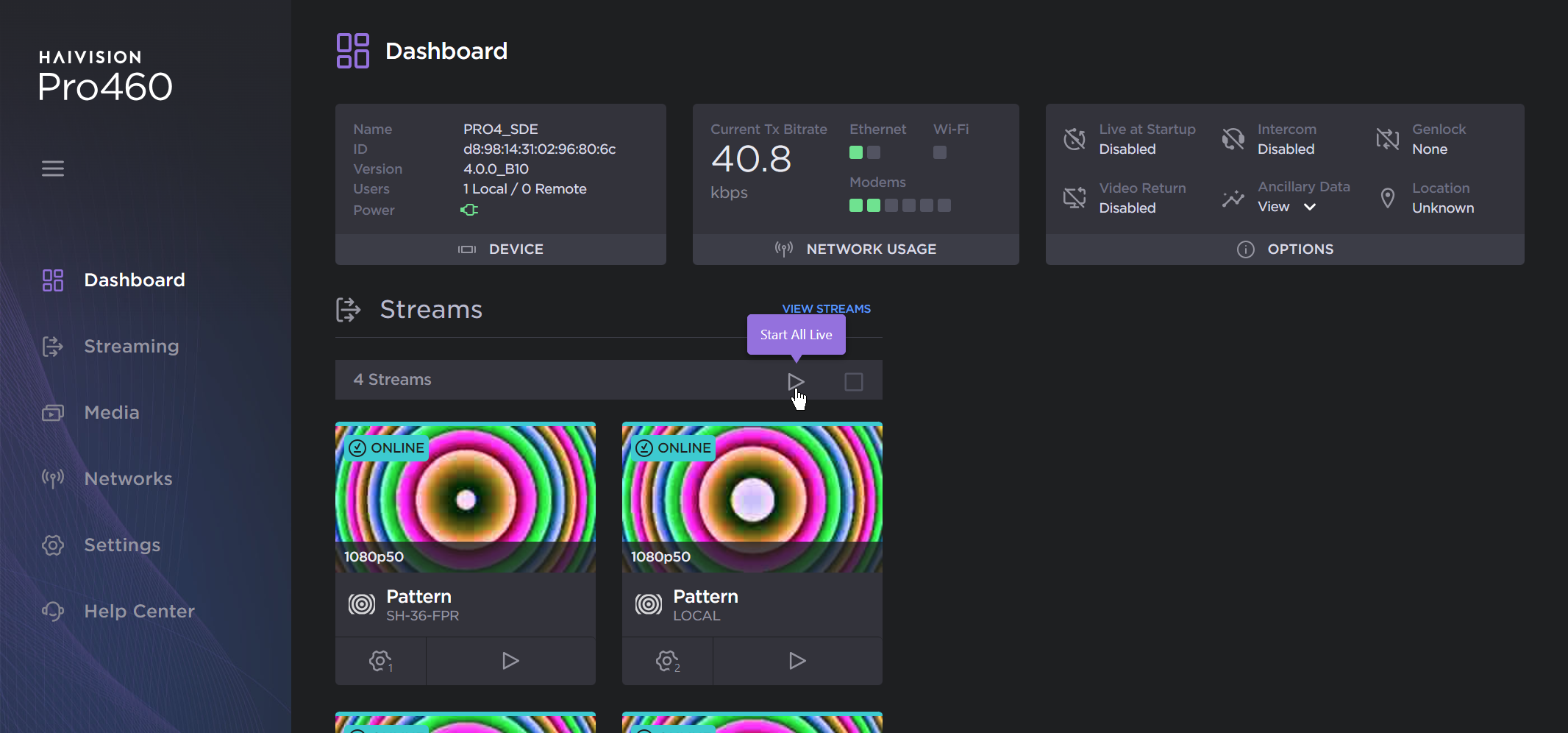

    Streams Play icon

To stop the Live:

  1. Click the
    Stop icon
    icon above the streams.

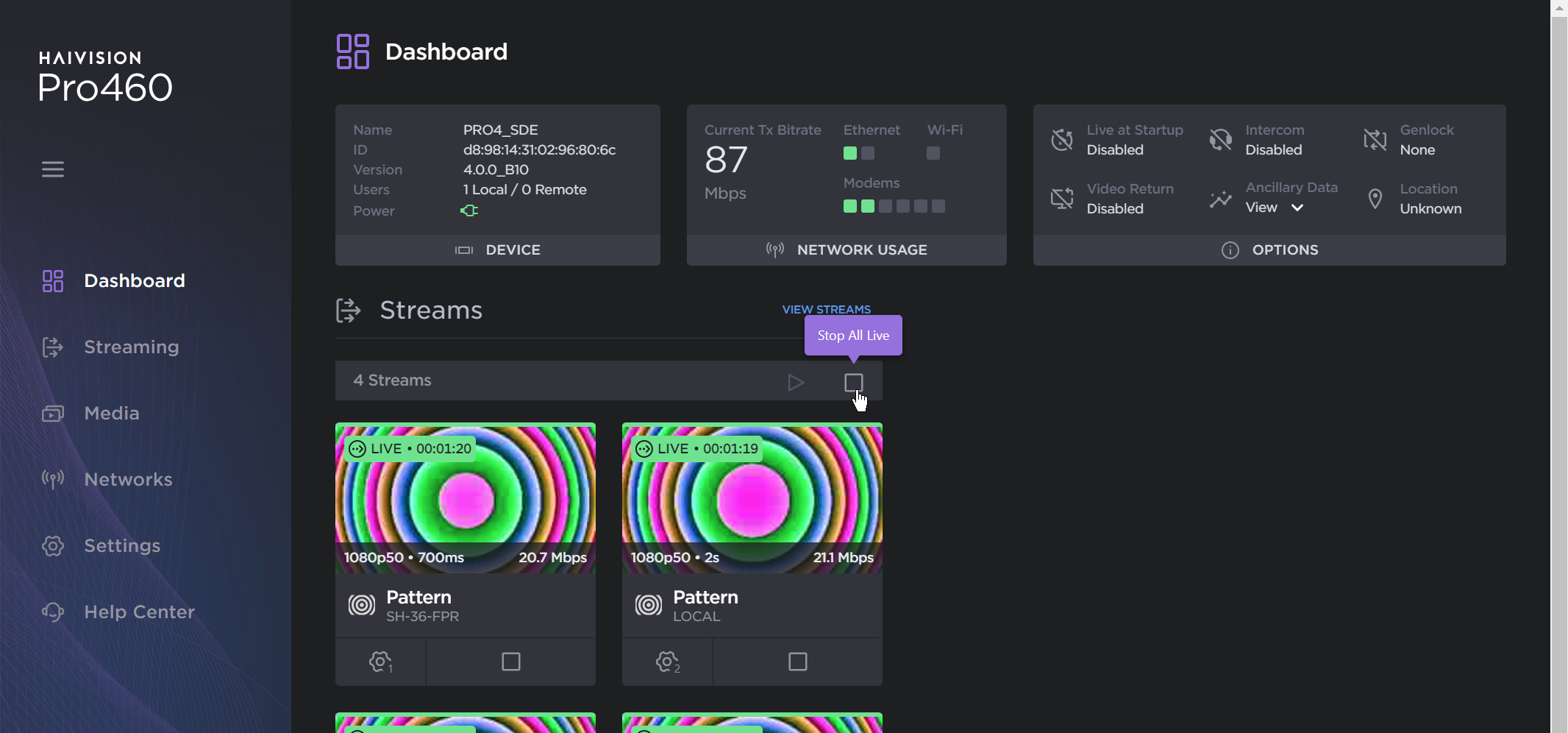

    Streams Stop icon
  2. Click the Stop button to confirm stopping the video transmission.
    Confirm Stop
Camera

Note

Before starting a live, make sure that the REC button, the Live profile, and the Destination profile have been configured. Please see Configuring the Camera's REC Button and Configuring Live Profiles.

To start a live:

  • Press the camera's REC button.

The Live is in progress.
