Starting a Live

You can start a live manually or you can enable the Auto-live at startup. See Enabling/Disabling Auto-Live at Startup.

Unit Panel

To start the Live:

  1. From the Home menu, tap
    Play button
    . The video preview appears on screen and the live profile selected is reminded. When tapping
    Arrow left
    or
    Arrow right
    , the Live menu provides some additional information.

    A icon
    Selected Live Profile
    B icon
    Selected Record Profile
    C icon
    Auto-record is enabled or not (OFF/ON)
    D icon
    The Selected Destination Profile

    You can modify these settings before starting the Live action.

    • To select another Live profile:

      1. Tap the
        Play icon
        field.
      2. Tap another Live profile.
    • To select another Record profile:
      1. Tap the
        Record icon
        field.
      2. Tap another Record profile.
    • To modify the Auto-Record mode:

      1. Tap the toggle button to enable or disabled Auto-Record.

    • To select another Destination profile:

      1. Tap the
        Destination icon
         field.
      2. Tap a different Destination profile.
  2. Tap
    Play button
    to start the Live. The video preview appears on screen.

    A icon
    Audio Bars indicating Audio Levels
    B icon
    Live Duration
  3. Tap

    Left arrow
    to display information about the Live action.

    A icon
    Network Bitrate
    B icon
    End-to-End Latency configured in the Live Profile or modified remotely from StreamHub interface
    C icon
    Source Standard
    D icon
    Live Duration

    Note

    Refer to the StreamHub User Guide to set another delay during Live operation.

    In case of a Live and simultaneous Record, a different screen appears:

    A icon
    Remaining recording time possible on SD card
    B icon
    Space used on SD card

To stop the Live:

  1. Tap
    Right arrow
    .
  2. Tap
    Play Off icon
    > Stop Live.

To stop the Record:

  1. Tap
    Right arrow
    .
  2. Tap
    Record off icon
    > Stop Record.

Note

Simultaneous Live and Record in H.264 1080p50/59.94/60 is not supported.

Web Interface

To start the Live:

  1. On the Dashboard, in the Streams section, click the

    Settings icon
    icon to check that the unit settings are configured and selected as required.

    Note

    If you enable the Auto-Record option, the video file is automatically recorded during the live.
  2. Click the Save button.

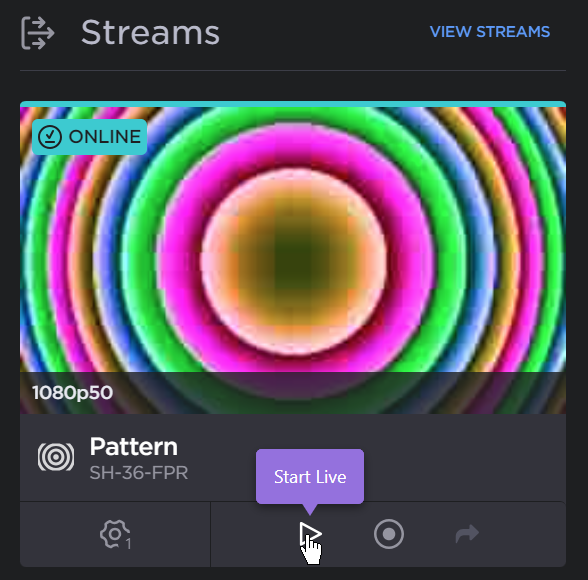

  3. Click the
    Play icon
    icon to start the Live.
    Start Live

To stop the Live:

  1. Click the
    Stop icon
    icon.

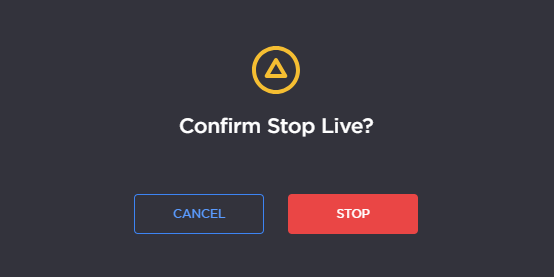

  2. Click the Stop button to confirm stopping the video transmission.
    Confirm Stop
Camera

Note

Before starting a live, make sure that the REC button, the Live profile, and the Destination profile have been configured. Please see Configuring the Camera's REC Button and Configuring Live Profiles.

  • Press the camera's REC button.

The Live is in progress.
