Starting a Live

You can start a live manually or you can enable the Auto-live at startup. See Enabling/Disabling Auto-Live at Startup.

Unit Panel

To start the Live:

1. From the Home menu, use the wheel to select .

2. Press the wheel to enter the LIVE menu. The video preview appears on screen and the live profile selected is reminded. When turning the wheel, the LIVE menu provides some additional information.



   Selected Live Profile
   Selected Record Profile
   Auto-record state (OFF/ON)
   The Selected Destination Profile

3. To select another Live profile:

   1. Turn the wheel to highlight the Live profile ().

   2. Press the wheel and turn to select the required profile.

   3. Press the wheel to confirm the choice.

4. To select another Record profile:

   1. Turn the wheel to highlight the Record profile ().

   2. Press the wheel and turn to select the required profile.

   3. Press the wheel to confirm the choice.

5. To modify the Auto-Record mode:

   1. Turn the wheel to highlight the Auto-record option.

   2. Press to switch the toggle button and enable Auto-record.

   Note: Simultaneous Live and Record in H.264 1080p50/59.94/60 is not supported.

6. To select another Destination profile:

   1. Turn the wheel to highlight the Destination Profile ().

   2. Press the wheel and turn to select the required profile.

   3. Press the wheel to confirm the choice

7. Turn the wheel to highlight and press the wheel to start the live. The video preview appears on screen.



   Audio Bars indicating Audio Levels

   Live Duration

8. Turn the wheel to the left to display information about the Live action.




   Network Bitrate
   End-to-End Latency configured in the Live Profile or modified remotely from StreamHub interface
   Source Standard
   Live Duration.

Note

Refer to the StreamHub User Guide to set another delay during Live operation.

In case of a live and simultaneous Record, a different screen appears:

Remaining recording time possible on SD card
Space used on SD card

To stop the Live:

1. Turn the wheel to the right.

2. Press the wheel to stop the live.

3. Press the wheel to confirm.

To stop the Record:

1. Turn the wheel twice to the right.

2. Press the wheel to stop the record.

3. Press the wheel to confirm.

Connection Loss during a Live with Simultaneous Record

Recordings of your Live events will continue even if the network connection is lost and Live is interrupted.

If the network connection is lost:

1. You will receive an error message.



2. Press the wheel to select OK and return to the Live preview, where you will see the recording still in progress.



3. Turn the wheel to the left to view the resolution and remaining recording time possible on the SD card.



Note

The Forward function is disabled when network connection is lost.

Web Interface

To start the Live:

1. On the Dashboard, in the Streams section, click the icon to check that the unit settings are configured and selected as required.

Note

If you enabled the Auto-record option, the video file is automatically recorded during the live.

2. Click the Save button.

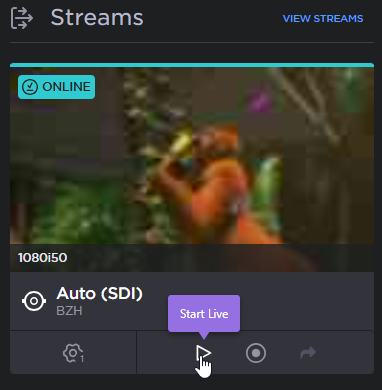

3. Click the icon to start the Live.



To stop the Live:

1. Click the  icon.

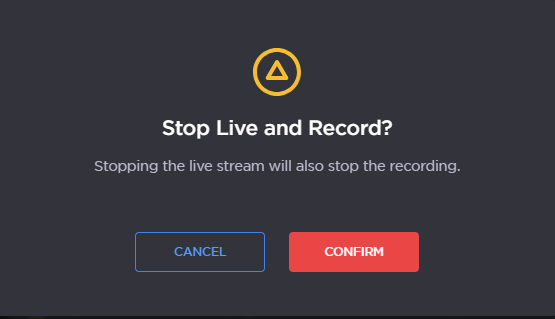

2. Click the Confirm button to confirm stopping the video transmission.



Connection Loss during a Live with Simultaneous Record

Recordings of your Live events will continue even if the network connection is lost and Live is interrupted.

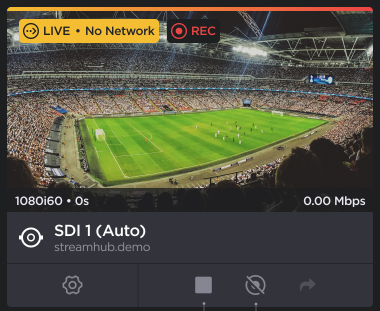

Network loss will be indicated by the No Network warning on the Live preview panel. When this occurs, you have the option to:

• Stop the Live and the Recording by clicking the icon,

• Stop the Recording only by clicking the icon.

Note

The Forward function is disabled when network connection is lost.
