Adding a Destination Profile

To add a destination Profile from the Unit Panel or from the Web Interface, see the sections below.

Unit Panel

1. From the Home menu, use the wheel to select > .

2. Press the wheel to create a new destination profile.

3. Use the wheel to configure the destination profile settings (see Destination Profile Settings below for details on each destination type).

4. Turn the wheel to select and press it to confirm.

To select the newly created Destination Profile, see Selecting a Destination Profile.

Web Interface

1. Click on Streaming > Destination.

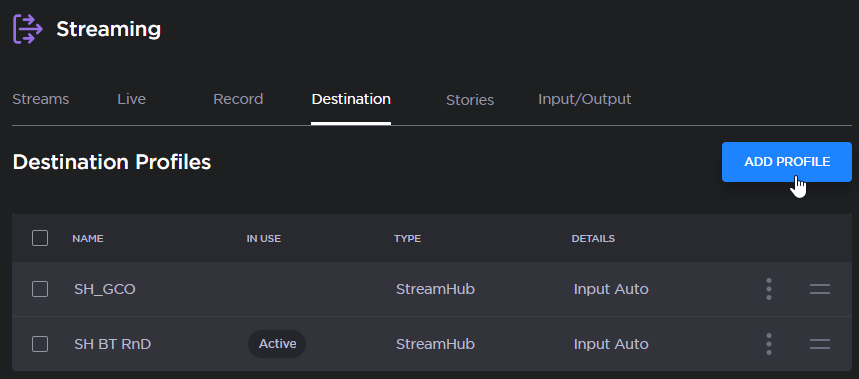

2. Click the Add Profile button.

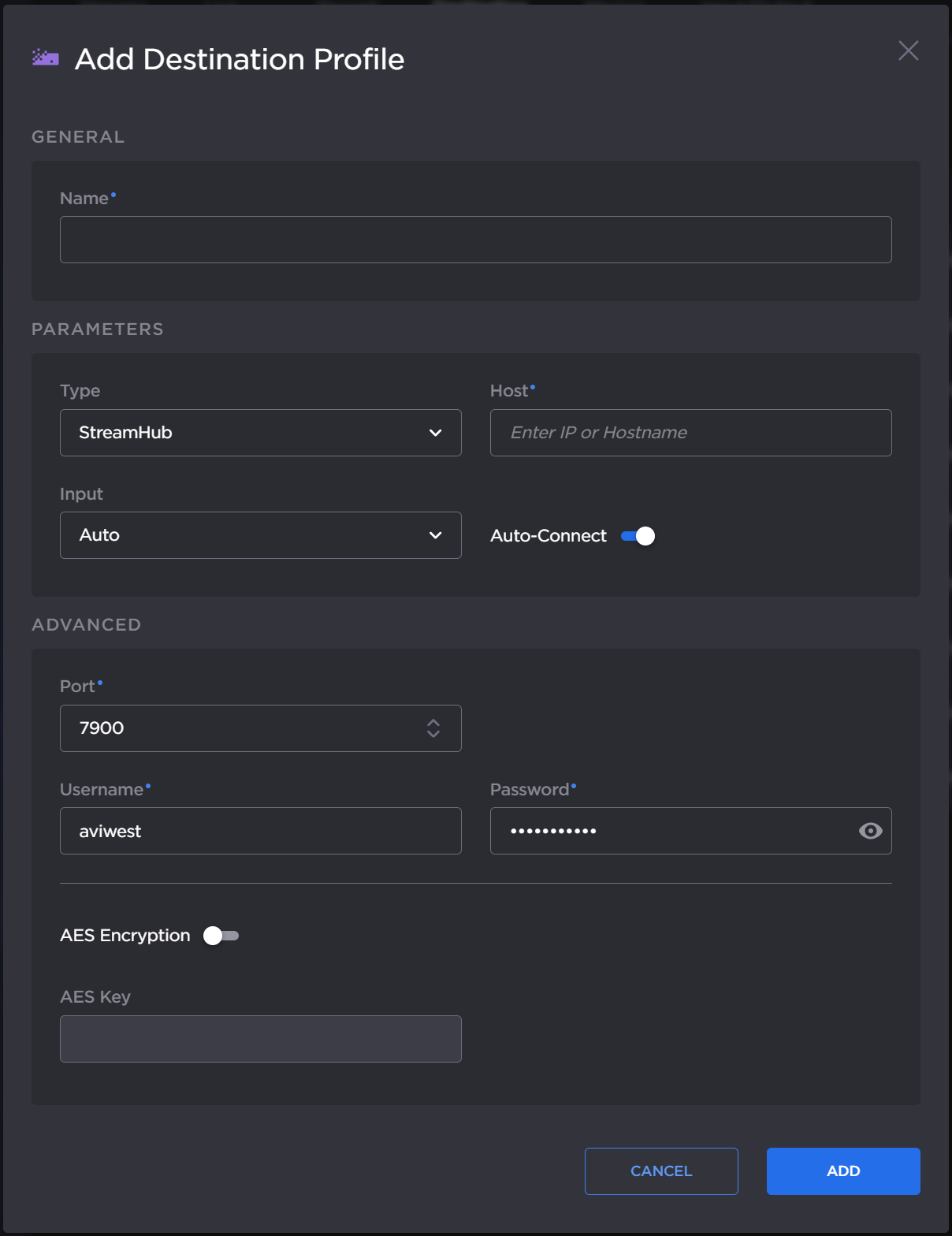

   The Add Destination Profile window appears:



3. Enter a Name for the Profile.

4. Select the type of Destination Profile (StreamHub, Manager, Hub360, or SRT Receiver) in the Type dropdown.

5. Configure the settings as shown in the table below.

6. Click the Add button.

To select the newly created Destination Profile, see Selecting a Destination Profile.

Destination Profile Settings

Note

• These settings may have been changed by the system administrator.

• Enable the Auto-connect option to automatically connect to a receiver when the unit is powered on.
