Configuring a BGAN Profile

By default, the unit does not have any Broadband Global Area Network (BGAN) profile. You must create and configure a BGAN profile before selecting it in a Live profile or a Forward configuration. See Adding and Configuring a Live Profile and Configuring a Forward Settings.

See the sections below.

Unit Panel

1. From the Home menu, click on



   >



   >



   .
2. Fill in the settings:
   - Profile Name
   - Model: Hughes 9201, Hughes 9211, Explorer 710.
   - APN.
3. Enter a Username and a Password (if required).
4. Select a Mode: X-Stream, Background, HDR Full-Asymmetric, HDR Full-Symmetric.
5. Click on



   to save the BGAN profile.

Web Interface

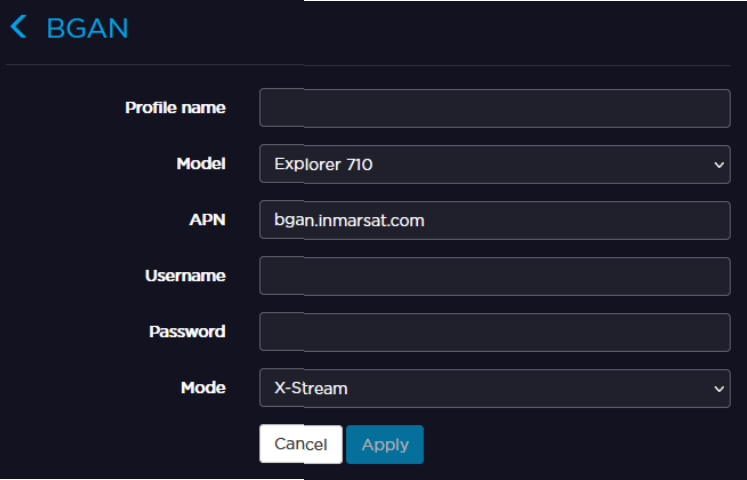

1. From the Web Interface, click Network > BGAN.
2. Click



3. Fill in the settings: Profile Name, Model, APN.
4. Enter a Username and a Password if required.
5. Choose a Mode in the drop-down list.
6. Click Apply.
