Dashboard Screen

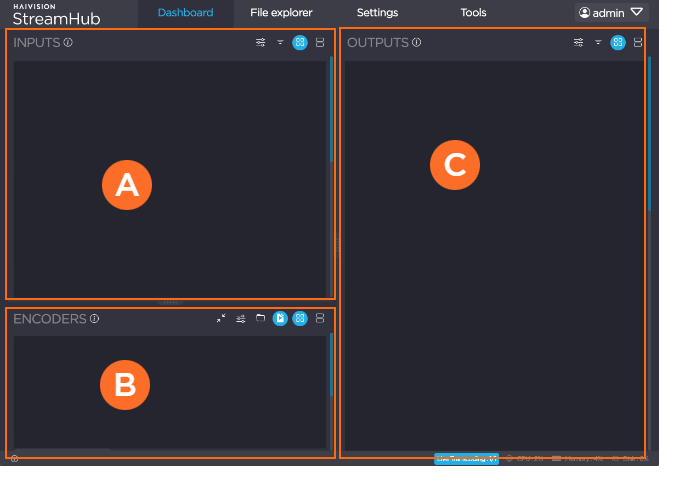

After signing in, StreamHub opens to the Dashboard screen. The Dashboard is where you perform a majority of your day-to-day tasks. These involve setting up inputs, encoders, and outputs for your various transmissions.The dashboard screen is split into three (3) sections:

Inputs section
Encoders/File Explorer section
Outputs section

Each section is comprised of:

• Toolbar of icons representing the available actions with a blue version of the icon indicating a current selection.

• Section  resizing handles to manually adjust the container.



• Thumbnails representing the available devices, sources, and outputs appropriate for that section. See (4.3.1) Thumbnails for a quick overview of actions available from a thumbnail.

Inputs Section

The Inputs section  is where you manage your:

• Streams coming from field units (using SST protocol). Field units connected directly to StreamHub automatically appear in this section.

• Streams coming from third-party IP sources (using RTSP, HLS, RTMP, TS, SRT, and NDI protocols).

• Recorded files that may have been stored on the server.

Inputs toolbar includes:

• IP Input Profiles

• Filter – select between any combination of types (devices, IP Profiles, Multi-View) and states (Off, On, Live)

• Thumbnail view

• List view

Encoders/File Explorer Section

The Encoders/File Explorer section  is where you can adapt encoding formats to IP destination profile requirements or explore files stored on StreamHub.

• To view the File Explorer in this section, click the  icon.

• To view the Encoders in this section, click the  icon.

The Encoders/File Explorer toolbar includes:

• (Encoders only) Encoder Profiles – add, search, and edit profiles

• Switches to File Explorer (with search) view

• Switches to Encoder view

• Thumbnail view

• List view

Outputs Section

Outputs section  is where you can manage various outputs:

• SDI physical outputs.

• NDI over IP.

• IP destinations towards third-party devices (using RTSP, HLS, RTMP, TS, and SRT protocols)

Output toolbar includes:

• IP Output Profiles

• Filter – select between any combination of types (Hardware, NDI, IP Profiles) and states (Off, On, Live)

• Thumbnail view

• List view
