SRT Connection Mode in Haivision Products
The following screenshots show where the SRT Connection Mode is selected in the Web or application interface of various Haivision products.
Kraken

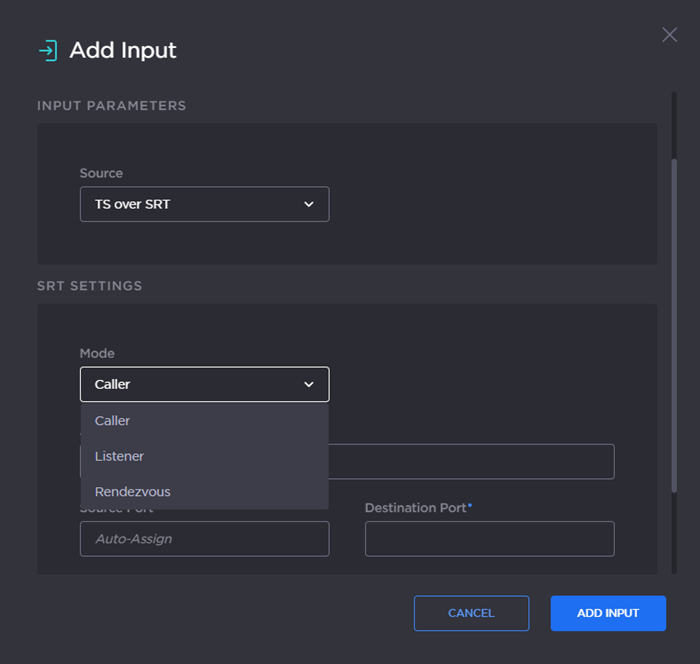

SRT Connection Mode menu when creating a new input in Kraken 4.0.

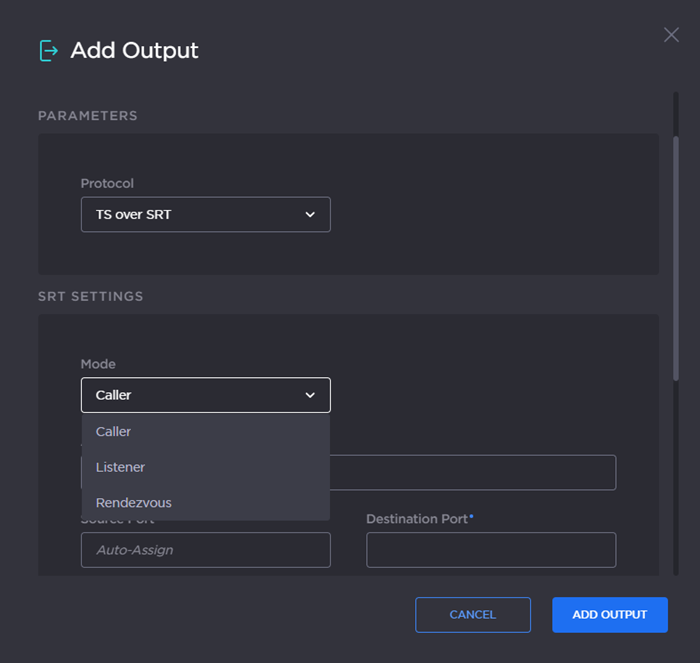

SRT Connection Mode menu when creating a new output in Kraken 4.0.
Makito X4 Decoder

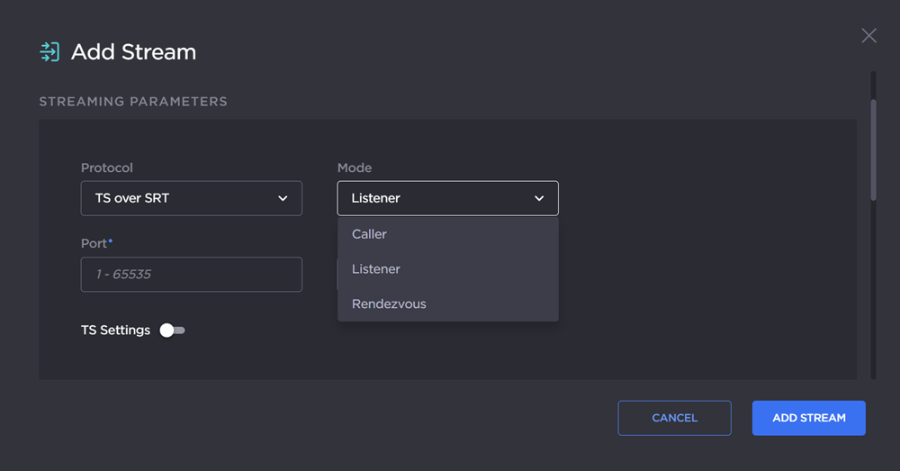

SRT Connection Mode menu when adding a stream in Makito X4 Decoder 1.6.
Makito X4 Encoder

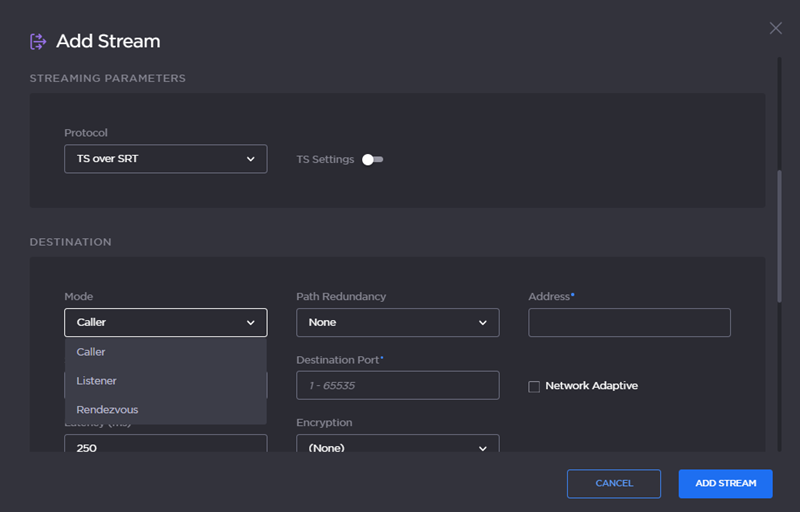

SRT Connection Mode menu for output streams in Makito X4 Encoder 1.7.
Makito FX Encoder

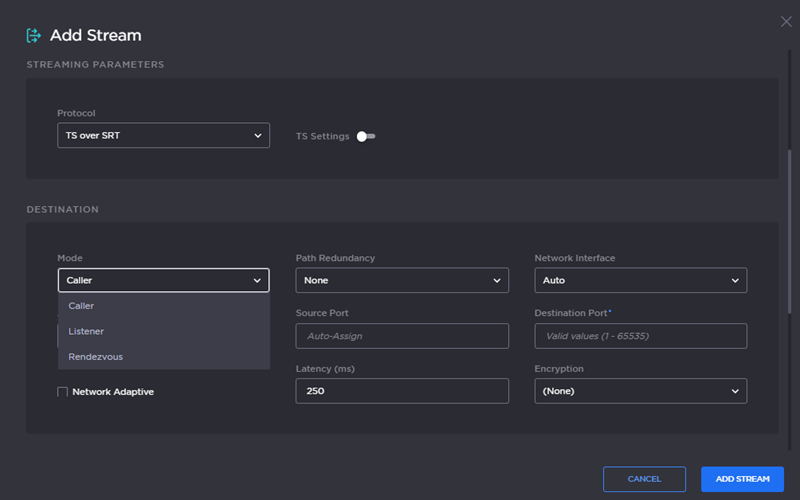

SRT connection options for output streams in Makito FX Encoder 1.0.
Makito X Decoder

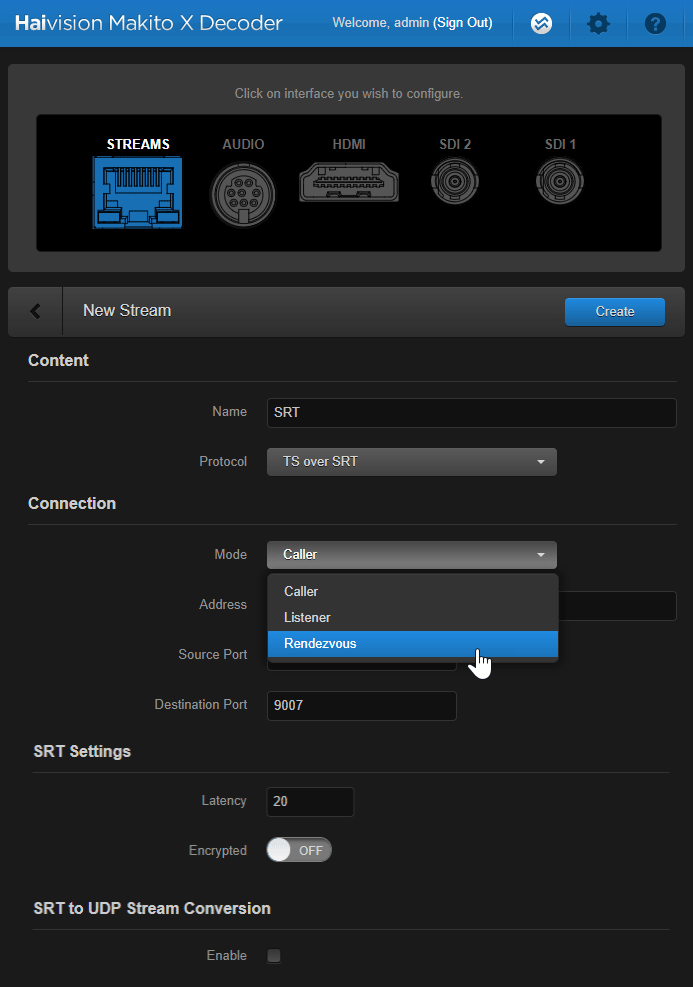

SRT connection mode menu for input streams in Makito X Decoder 2.5.
Makito X Encoder

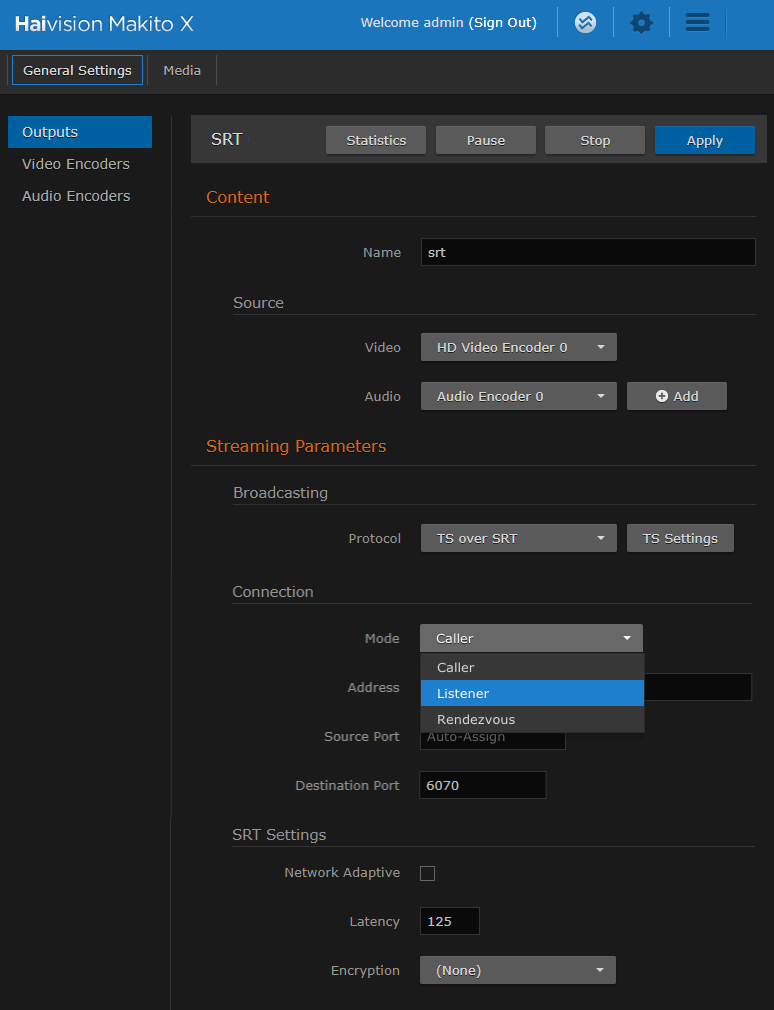

SRT Connection Mode menu for output streams in Makito X Encoder 2.5.
Media/SRT Gateway

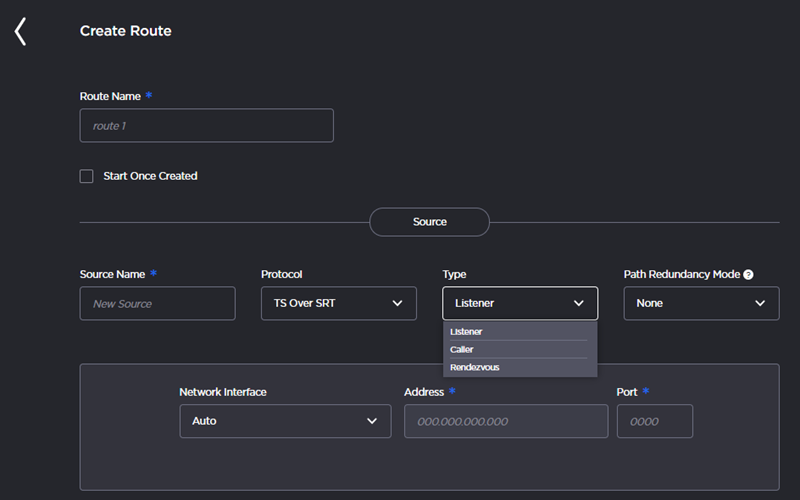

SRT Connection Type menu during route creation in Haivision Gateway 3.8.1.
Media Platform

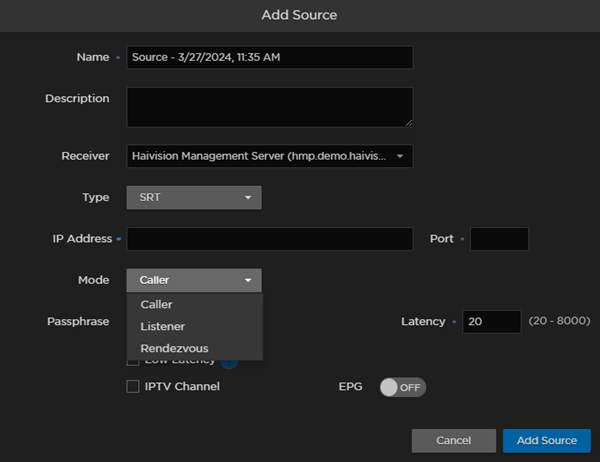

SRT Connection Mode menu when adding sources in Haivision Media Platform 3.10.2.
Play Pro for Mobile

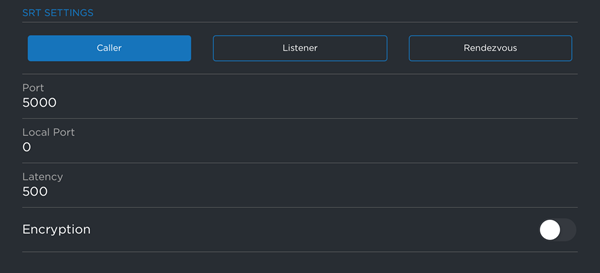

SRT settings on the Live Capture Settings screen for all versions of Play Pro Android and iOS versions prior to 3.4.0.

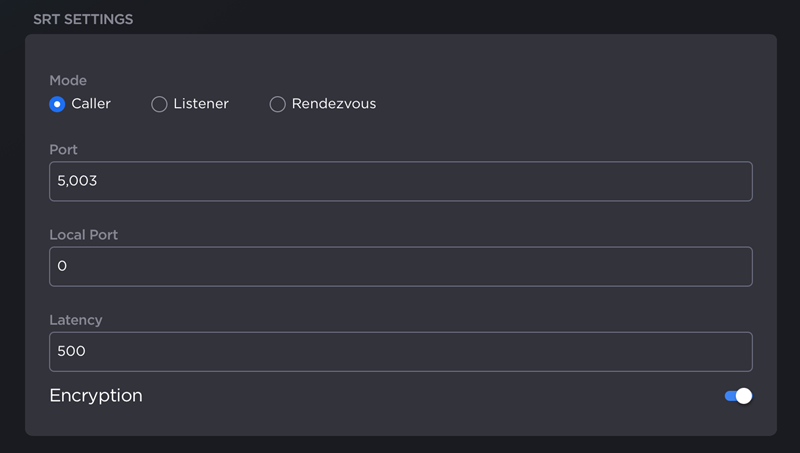

SRT connection mode settings on the Live Capture Settings screen for Play Pro iOS version 3.4.0 and beyond.
