Play 2000 STB Quick Start Guide

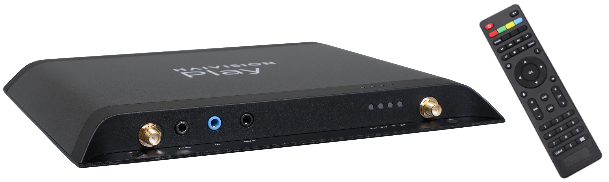

The Haivision Play Set-Top Box series delivers unsurpassed performance, quality, security and reliability for group viewing of live and on-demand content for enterprise applications including CEO webcasting & all-hands events, internal broadcasting, commercial IPTV, research projects, human resource training and any other video-based corporate communication content from the Haivision Media Platform. With support for up to full HD video, the Haivision Play 2000 Set-Top Box provides a pristine viewing experience for the Haivision Media Platform.

Note

To connect your Play 2000 STB Rev A to Haivision Media Platform, your Havision Media Platform must be version 3.0 or higher.
To connect your Play 2000 STB Rev B to Haivision Media Platform, your Havision Media Platform must be version 3.1 or higher.
To connect your Play 2000 STB Rev C to Haivision Media Platform, your Havision Media Platform must be version 3.10.1 or higher.

This Quick Start Guide summarizes the basic steps required to set up, register, and configure your set-top box and get started viewing video. For more detailed information, please refer to the Haivision Play 2000 STB User's Guide.

Safety Guidelines

Use the following guidelines when unsafe conditions exist or when potentially hazardous voltages are present:

Always use caution and common sense.
To reduce the risk of electrical shock, do not operate equipment with the cover removed.
Repairs must be performed by qualified service personnel only.

Improper handling and/or installation practices of sensitive equipment may VOID the warranty.

Please pay particular attention to the following points in order to help protect yourself and the set-top box:

The Haivision Play Set-Top Box is an indoor appliance and should be kept in a dry, dust free environment.
To reduce the risk of fire or electric shock, keep this product away from exposed direct sunlight, open flames or heat, large amounts of moisture, dust, or sand.
To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product.
There are no user-serviceable parts inside the unit. Opening the set-top box or making unauthorized changes will void the warranty.
Only connect the unit to a compatible power source.
If you experience any issues or problems, consult your local service provider or support organization.
Never try to force the connections when setting up the system as this may damage the unit.

Caution

When handling components, or when setting switch options, always use an antistatic wrist strap connected to a grounded equipment frame or chassis. If a wrist strap is not available, periodically touch an unpainted metal surface on the equipment. Never use a conductive tool, such as a screwdriver or a paper clip, to set switches.

ATTENTION Lors de la manipulation de composants ou lors du réglage des options de commutateur, utilisez toujours un bracelet antistatique connecté à un cadre ou un châssis d'équipement relié à la terre. Si aucun bracelet n'est disponible, touchez périodiquement une surface métallique non peinte de l'équipement. N'utilisez jamais d'outil conducteur, tel qu'un tournevis ou un trombone, pour régler les commutateurs ou interrupteurs.
