Setting Up Streaming

From the Outputs pages, you can set up streaming.


On the Makito X with Storage, you can set up streaming only, recording only, or streaming with recording.

  1. Click Outputs on the sidebar (under General Settings).
  2. On the Outputs List View, click
    Plus Icon
    Add to create the first stream or recording session.

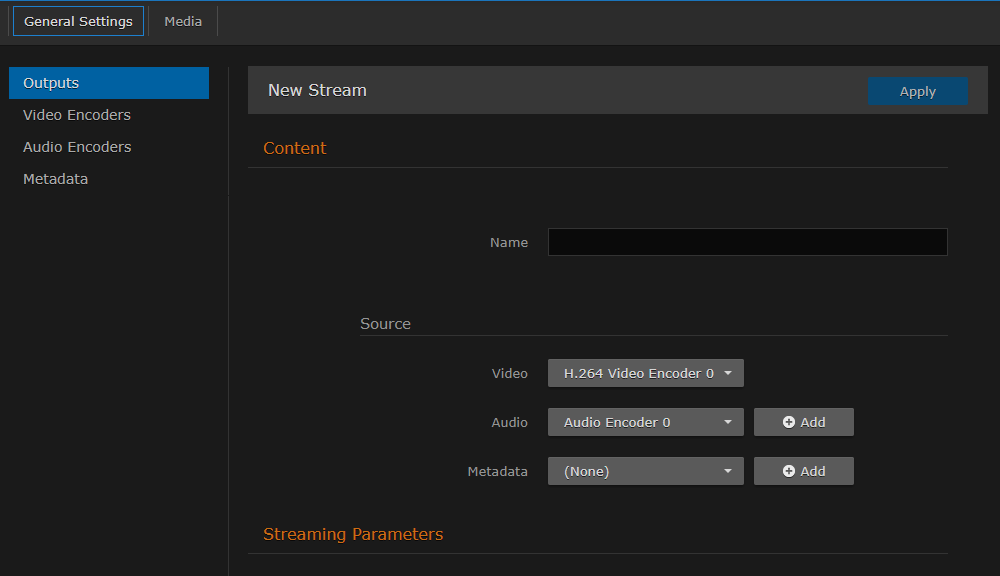

  3. On the New Stream page, fill in the fields to choose the Content:
    New Stream Page
  4. Type a name for the stream in the Name field.
  5. For the Source, (as an example) use Video Encoder 0 and Audio Encoder 0 (analog) with no Metadata.


    By default, SDI Input 1 is assigned to Video Encoders 0 and 1, and SDI Input 2 is assigned to Video Encoders 2 and 3.
  6. (Makito X with Storage only) To set up streaming, toggle the Streaming Parameters button to On.
  7. For a basic MPEG-2 transport stream setup, under Broadcasting, select TS over UDP as the Protocol (keeping the default TS settings).
  8. Under Destination, type in the IP Address and Port number, for example, multicast address and port 2000
  9. Leave the default values for the remaining Streaming parameters. See Streaming Output Settings in the User's Guide.
  10. If you only want to create a streaming session, click Apply now. Otherwise skip this step.
