Configuring Streaming Outputs

From the Outputs pages, you can set up either streaming only, recording only, or both streaming with recording. This section covers setting up streaming.  It also provides an option for you to either start, stop, pause, or delete the stream.


Recording is only available on the Makito X with Storage dual-height model (either fixed or removable SSD). For information on recording, see Configuring Recording Outputs. Recording is not available on HEVC-capable appliances.

Outputs List View

To open the Outputs List View:

  1. On the Streaming page, click General Settings on the navigation bar and Outputs on the sidebar.
    The Outputs List View opens, displaying the list of defined streams for the encoder.

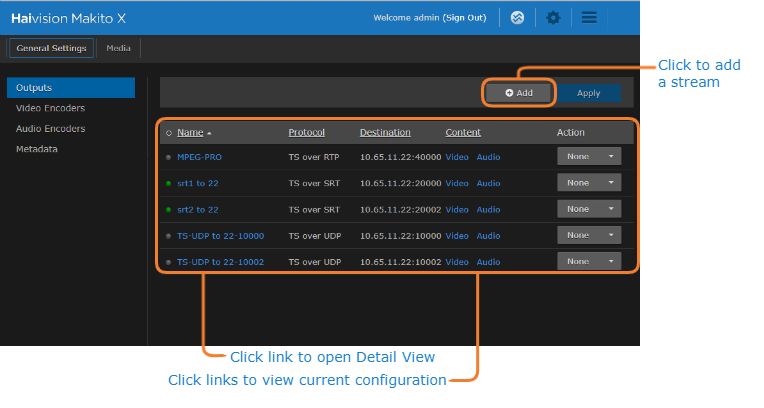

    Outputs list view

    The Outputs List View displays the status LED, Stream Name, Protocol, Destination (IP Address and Port), and selected Content (Video/Audio Encoders and Metadata source) for each stream.
  2. From here, you can perform the following tasks:
    • To create an output stream or recording session, click the
      Plus Icon
      Add button.
    • To view details or modify the settings for a stream or recording, click a link in the table under Name to open the Outputs Detail View.
    • To view the video or audio encoder or metadata source for a stream, hover over a link in the table under Content to display the configuration information.

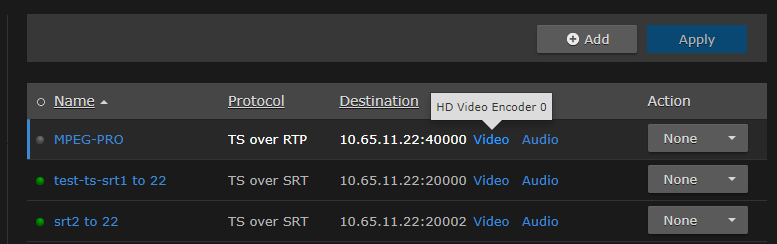

      Video Source Popup
    • To view the status of a stream or recording, hover over the status LED or REC link (to the left of the row).

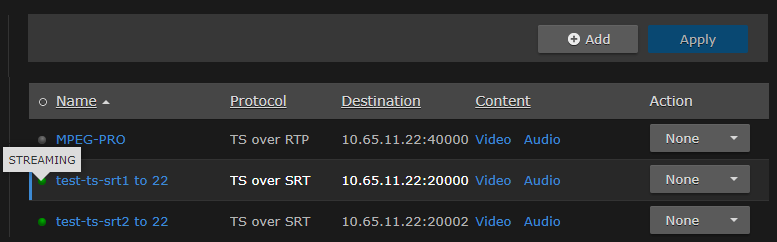

      LED Status Indicator
    • To change the status for an existing stream, click the drop-down list under Action and select either Pause, Resume, Start, Stop, or Delete (as applicable).
    • To sort the streams by Name, Protocol, Destination IP, or Content, you can click on a column header to sort by that column. The first click sorts by ascending order, indicated by an up arrow next to the column header. Clicking again sorts by descending order, indicated by a down arrow next to the column header.

  3. To apply your changes, click Apply
