Serial Connector
On Unit | Mating Connector | |
|---|---|---|
Manufacturer | Hirose | Hirose |
Connector Type | Serial Connector | Serial Connector |
Part Number | LF13WBRB-11S | LF13WBP-11P |
Serial Connector Pinout | ||
|---|---|---|
Description | ||
Contact # | RS-232 | RS-422 |
1 | N/C | COM 0 – RXD- |
2 | GND | GND |
3 | RXD | COM 0 – RXD+ |
4 | N/C | COM 0 – TXD+ |
5 | N/C | N/C |
6 | TXD | COM 0 – TXD- |
7 | N/C | N/C |
A | GND | GND |
B | SYS_RESET# | SYS_RESET# |
C | GND | GND |
D | N/C | N/C |

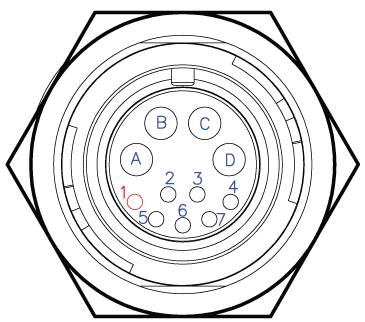

Serial Connector - System Reset Pin Locations
Note
The System Reset button (RST# signal) provides two options:
If you press and hold the button for less than 4 seconds, the system resets and loads the last saved configuration. If no configuration was previously saved, the default settings prevail.
If you press and hold the button for more than 4 seconds, the module performs a complete factory reset. It clears all of the previously configured settings, including IP, streams and encoder configurations.
For the connector and cable, see Step #4 in Connecting to the Network and Audio/Video Sources.
