Ethernet Connector
The Makito XCR video encoder allows for connectivity with one 10/100/1000 Gigabit Ethernet port over CAT-5 unshielded twisted pair per IEEE 802.3ab. The naming convention is per IEEE STD 802.3. This port is designated as GBE0.
Network Connector | ||
|---|---|---|
On Unit | Mating Connector | |
Manufacturer | Hirose | Hirose |
Connector Type | Network Connector | Network Connector |
Part Number | LF10WBRB-12S | LF10WBP-12P or |
Ethernet
Network Connector Pinout | |
|---|---|
Contact # | Description |
1 | ETH A+ |
2 | ETH A- |
3 | ETH B+ |
4 | ETH B- |
5 | ETH C- |
6 | ETH C+ |
7 | ETH D- |
8 | ETH D+ |

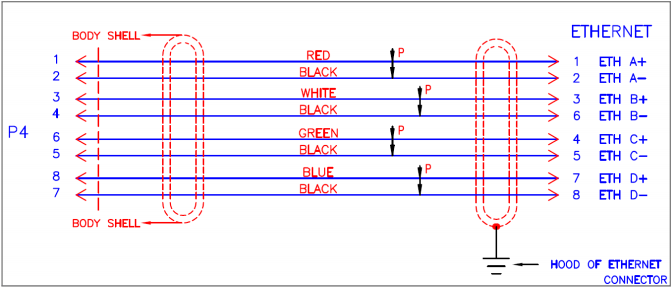

Ethernet Wiring Diagram
For the connector and cable, see Step #2 in Connecting the Makito XCR to the Network and Audio/Video Sources.
