Serial Management Adapter DB9 Pinout (Makito X SDI)
An adapter is required to interface with the serial port. A (gray) DB9 to RJ45 Serial Management adapter (shown in Connecting the Encoder to the Network and a Computer) is included in the package.
The Serial Management adapter has the following pinouts:
Management Port (RJ-45 Jack) | Serial Port (DSub-9 Female Connector) | ||
|---|---|---|---|
Pin # | Signal | Pin # | Signal |
1 | RI (Ring Indicator) | 9 | RI (Ring Indicator) N/C |
2 | DCD (Data Carrier Detect) | 4 | DTR (Data Terminal Ready) |
3 | DTR (Data Terminal Ready) | 6 | DSR (Data Set Ready) |
4 | GND (Ground) | 5 | GND (Ground) |
5 | RXD (Receive Data) | 3 | TXD (Transmit Data) |
6 | TXD (Transmit Data) | 2 | RXD (Receive Data) |
7 | CTS (Clear to Send) | 7 | RTS (Request to Send) |
8 | RTS (Request to Send) | 8 | CTS (Clear to Send) |
1 | DCD (Data Carrier Detect) | ||

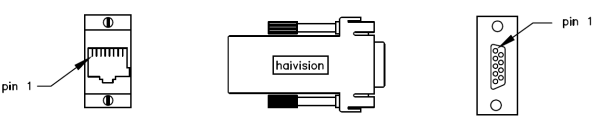

Management and Serial Ports
