Chassis Styles
The Makito X is available in the following chassis styles:
- as an ultra-compact appliance (single-height or dual-height) for single or dual channel encoding.
- as a blade within a 1RU chassis (MB6X) that can contain up to six single-height or three dual-height Makito X or other Haivision encoder/decoder blades.
- as a blade within a 4RU chassis (MB21) that can contain up to 21 single-height or ten dual-height Makito X or other Haivision encoder/decoder blades.
In addition, the following harsh or ruggedized appliances are available:
- Makito X Harsh semi-ruggedized, industrial single or dual SDI encoder appliance.
- Makito XR ("Ruggedized") platform supporting two or four video input variants in a MIL-STD rugged appliance. Note that support for analog and embedded audio capture or encoding is not currently provided for the Makito XR.
- Makito XCR ("Compact Ruggedized") SDI platform supporting two or four video input variants in a compact and ruggedized military-grade appliance.
- Makito X HEVC Rugged platform supporting HEVC encoding in a ruggedized military-grade appliance.
The Makito X single-height and dual-height chassis appliances and single blades are shown in the Product Overview. The Makito X with HEVC, MB21 and MB6X chassis, Makito X Harsh, and Makito XCR are shown in the following figures.

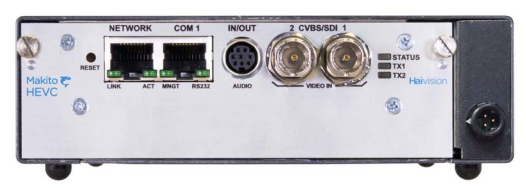

Makito X HEVC Encoder, Rear View (#S-292E-SDI2-HEVC)

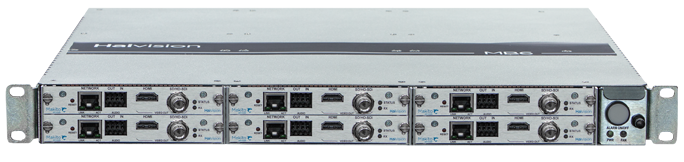

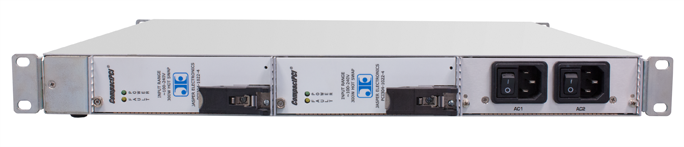

MB6X Multichannel Chassis ( Front and Rear Views, #MB6X-RAC)
![MB6X Multichannel Chassis (Front View)](../../__attachments/5476071/MB6_Front.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
![MB6X Multichannel Chassis (Rear View)](../../__attachments/5476071/MB6_AC_Back.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
Note
The MB6X is available with a single AC, DC, or medical grade AC power supply. For details, please refer to the MB6 Chassis Installation Guide.

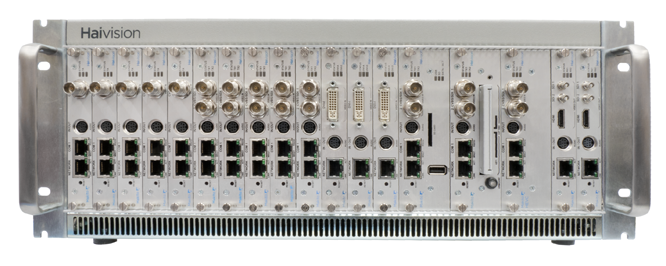

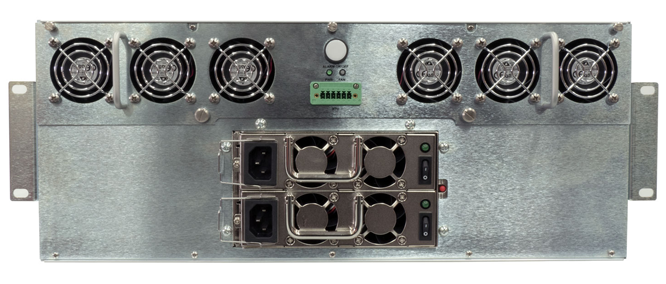

MB21 Multichannel Chassis ( Front and Rear Views, #F-MB21X-R )
![MB21 Multichannel Chassis (Front View)](../../__attachments/5476071/MB21_Front.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
![MB21 Multichannel Chassis (Rear View)](../../__attachments/5476071/F-MB21X-R_Rear.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)

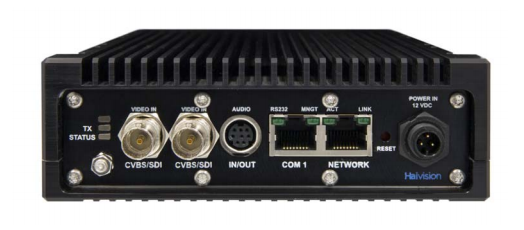

Makito X Harsh (Dual SDI Encoder Appliance)

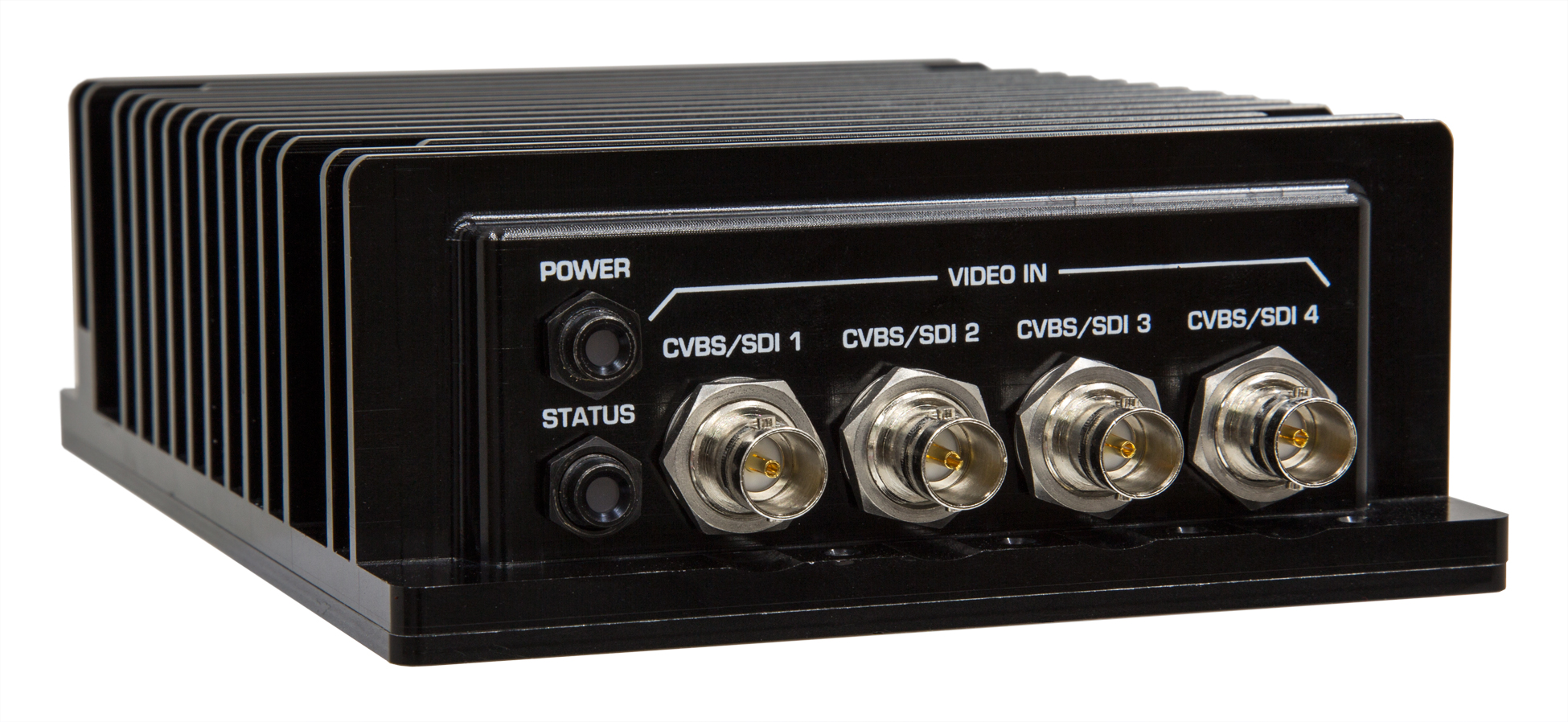

Makito XCR (compact and ruggedized Makito military-grade appliance)
Note
For details on the Makito X harsh or ruggedized encoders, please refer to the following documents (available on the Haivision InfoCenter):
- Makito X HEVC Rugged Encoder Installation Guide
- Makito XCR Encoder Installation Guide
- Makito XH Encoder/Decoder Installation Guide
- Makito XR (Ruggedized) Installation Guide (PDF only)
