Streams List View
The Streams List View displays a summary of defined streams for the decoder, including the Name, Protocol, Connection details, and status LED for each stream. It also shows the selected Outputs (once streams have been bound to the SDI 1 and SDI 2 output interfaces). If Talkback is enabled, it shows the stream selected for Talkback.
To display the Streams List View:
- (If not already on the Streams List View) Click the Streaming icon on the toolbar.

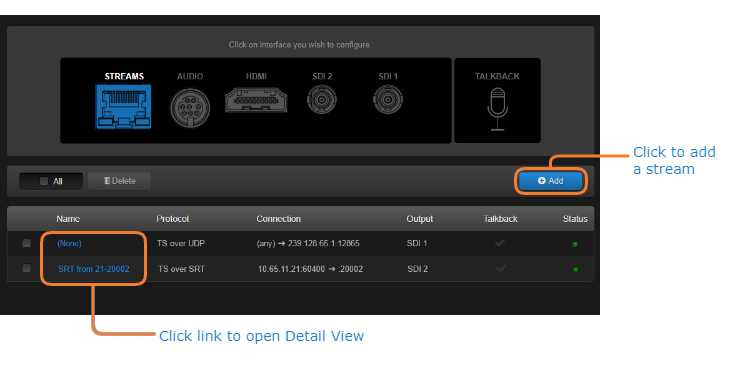

The Streams List View opens, showing the defined streams for the decoder (see following example). From here, you can perform the following tasks:
- To add a decoder stream, click the Add button. See Configuring Decoder Streams.
- To view details of an existing stream, click a link in the table to open the Streams Detail View. See Configuring Decoder Streams.
- To display SAP-advertised streams, select “Discovered (SAP)” or “All” from the Display drop-down list. (SAP listening must be enabled; for details, see Enabling and Disabling Network Services.)
- To start Audio Talkback (if enabled), click TALKBACK and begin talking into your microphone. For details, see Starting and Stopping Audio Talkback.
- To delete an existing stream, check the checkbox next to one or more streams in the list (or check All), and click Delete.
