SDI 2 Output

Note

When the decoder is licensed for one channel only, the SDI2 option is not available.

1. Click SDI 2 on the output interface navigation bar.

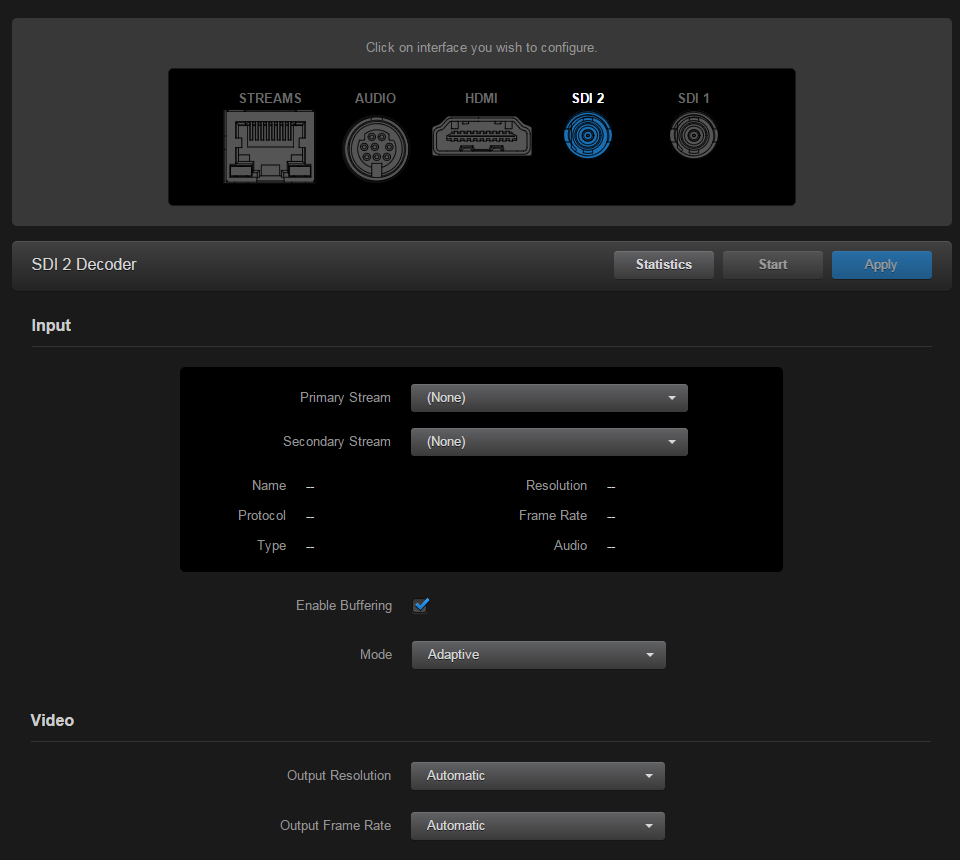

2. On the SDI 2 Decoder page, follow the steps in Configuring SDI Decoder Output to select the Input Stream, and if required, to change the default video settings.




3. To apply your changes, click Apply.
4. To start or stop video decoding, click Start or Stop (as applicable).
5. To view statistics for the decoder, click Statistics.



Related Topics

• Configuring Decoder Outputs
