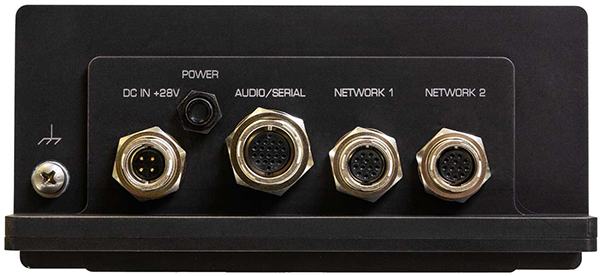

Enclosure Back Panel

The Makito X4 Rugged enclosure provides rugged connectors for connecting the encoder's Power, Audio, and Serial inputs, as well as the Network interface(s), located on the back panel. There is one LED that indicates the Power encoding status.

Connectors

Connector	Description	Number of Contacts
Power Entry Connector	DC IN +28V Power Connector Hirose P/N LF10WBRB – 4P	4
Analog Audio/Serial Input Connector	Hirose P/N LF13WBRB – 20S	20
Ethernet Connector	2X Hirose P/N LF10WBRB – 12S	12

Note

Hirose Cable Assemblies: Cabling must be done using the Hirose LF Series Connector Termination and Assembly Instructions.

LED Status Indicator

Function	Description	Indication
POWER	Off	No power
	Green fast blinking	Reset button is pressed for less than four seconds. If the Reset button is not pressed, there is a power fault.
	Green slow blinking	Booting/Initialization
	Green solid	Booting/Initialization sequence is complete (No fault/OK).
	Red fast blinking	Reset button is pressed for more than four seconds (Factory Reset enabled).
	Red slow blinking	Reset button is released after the Red fast blinking state (executing Factory Reset).
