Ethernet Connector
The Makito X4 Rugged video encoder allows for connectivity with two 10/100/1000 Gigabit Ethernet ports over CAT-5 unshielded twisted pair per IEEE 802.3ab. The naming convention is per IEEE STD 802.3. These ports are designated as Network 1 and Network 2.
Network Connector | ||
---|---|---|
On Unit | Mating Connector | |
Manufacturer | Hirose | Hirose |
Connector Type | Network Connector | Network Connector |
Part Number | LF10WBRB-12S | LF10WBP-12P or |

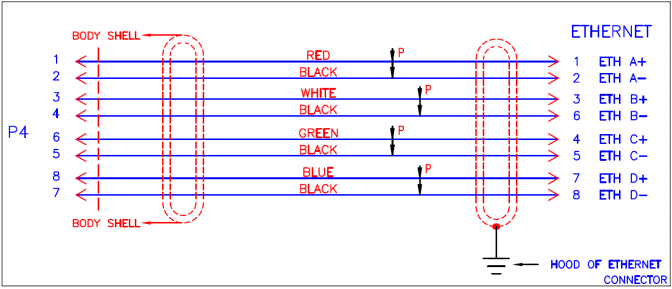

Ethernet Wiring Diagram
![Ethernet Connector Pinout Diagram](../../__attachments/5477444/eth%20conn%20pinout%20diagram.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
For the connector and cable, see Step #2 in Connect to the Network and Audio/Video Sources.
