Power Connector Pinouts (Single-Height Chassis)

The power connectors for the Single-Height Chassis have the following pinout:

Single-Height - Power Connector

Pin #Description (Conxall P/N 16282-3SG-318)
1Reserved / Not Connected

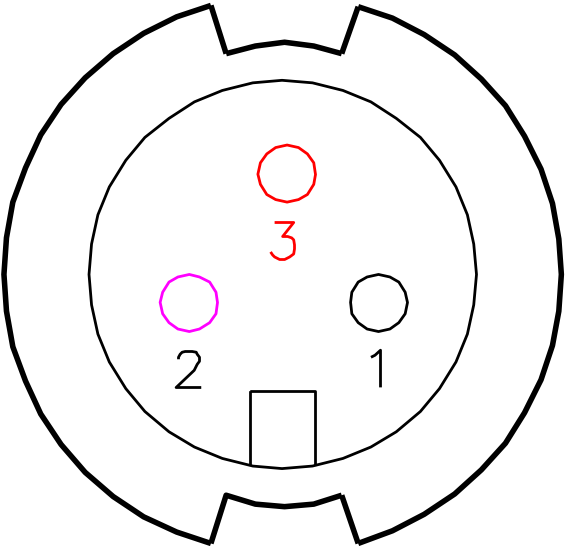

Single-Height Power Connector
