Enabling and Disabling Network Services
For security purposes, an administrator may need to stop one or more network services from accessing the Makito X4 decoder. From the Services page, you can enable and disable network services, including HTTP, SSH, Telnet, and SNMP. You can also enable or disable Haivision EMS as well as the Control Center Thumbnail Previews.
Important
In order to optimize your decoder’s performance, it is recommended that only the required network services be enabled. Please review the network services to make sure services used for your application are enabled or disabled as appropriate.
Caution
Take care not to disable all network services. You must at least keep http (Web interface), telnet, or ssh active, otherwise, you will lose access control to the unit. If this occurs, the only way to re-enable these services is by performing a Factory Reset (For details, see Resetting the Decoder).
Click Settings on the side menu and Services on the navigation bar.

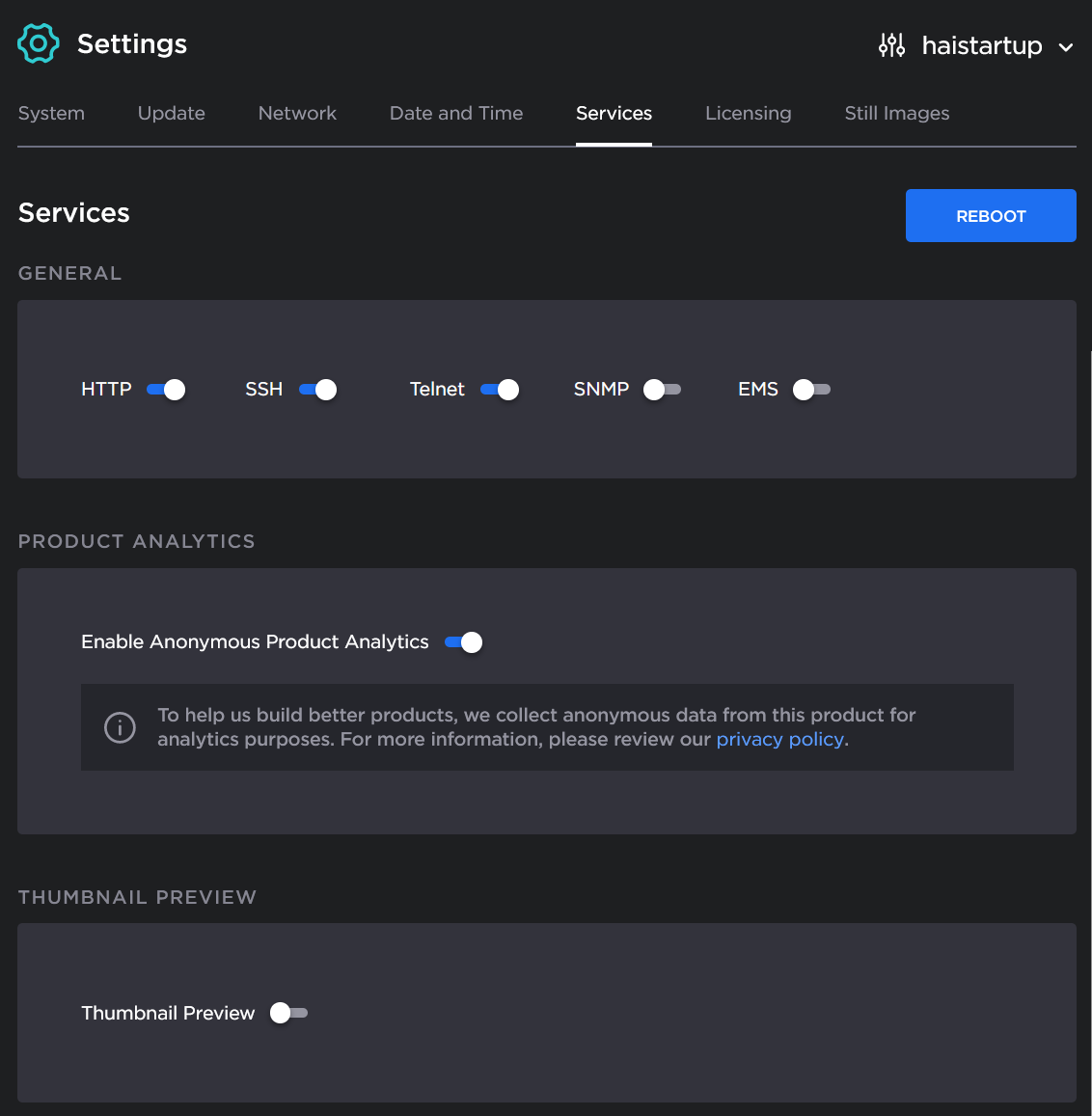

The Services page opens displaying the current status of network services.
- To enable or disable a service, toggle the associated Service on (blue) or off (grey).

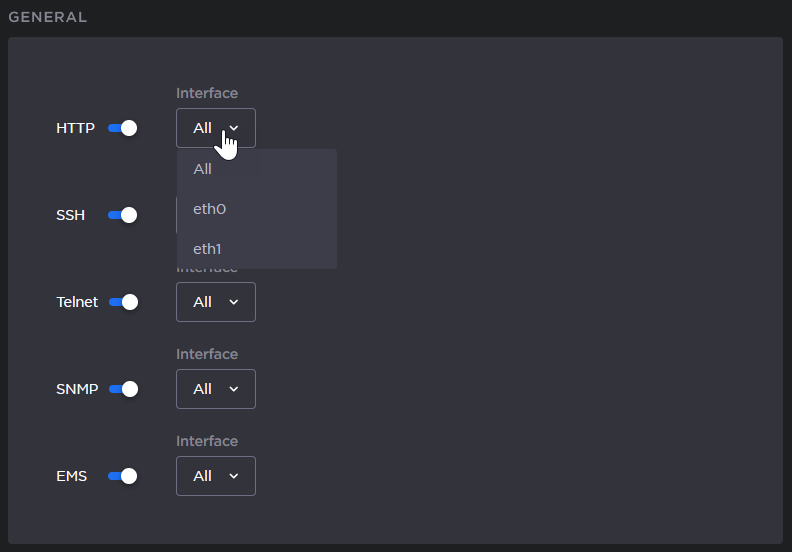

If the SFP+ module on the decoder is used to add a second NIC (eth1), select the Network Interface to be used for each service (All, eth0, or eth1).
The service(s) will be stopped or started immediately (you do not need to click Apply). For details, see Services Settings. - To pair the decoder with Haivision-EMS, toggle EMS on, and configure the settings in the EMS / Cloud Services section. For details, see Pairing the Decoder with Haivision EMS.
To enable thumbnail previews, toggle Preview to On. If you customized the interval length (in seconds) click Save.
Tip
Network services can also be enabled/disabled using the CLI service command.
